Touch screen RFID system

compactindoorfor food applications

Overview

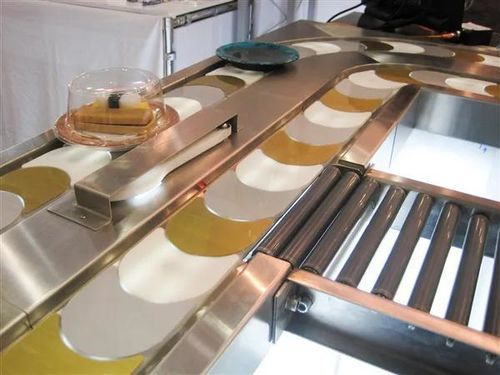

• Standalone freshness control system for conveyor lines using RFID time-tracking.
• Automatic rejection of plates that exceed the preset shelf life via a Reject Station.
• Includes an optional sushi timer base for plate-level timing (1–4 hours).

Operation

The operator selects the target shelf life on the touch screen. Each plate is tracked by an RFID tag; when a plate reaches its expiry time the Reject Station removes it from the conveyor. The system operates standalone and does not output analytical data.

Key features

• RFID time-tracking for individual plate monitoring.
• Standalone system with integrated Reject Station for automated removal.
• Touch-screen selection of shelf-life settings.
• Multiple configurable time options (1, 2, 3 or 4 hours).
• Designed for retrofit to existing conveyors.
• Supports branding/marketing through identifiable timer bases or tags.

Sushi Timer

• Compact timer module installed as a base under the plate.
• Electronic timer with built-in clock and red light signal when preset time elapses.
• Available timer settings: 1, 2, 3 or 4 hours.
• Base height: approximately 28 mm.
• Upper surface grooved to secure the plate bottom on the conveyor.

Advantages (Timer)

• Controls and verifies food freshness at plate level.
• Reduces manual checking and human error.
• Simple maintenance and operation for food-service environments.

Technical specifications

• Technology: RFID time-tracking
• System type: Standalone freshness control system with Reject Station
• Timer settings: 1, 2, 3 or 4 hours
• Timer base height: approx. 28 mm
• Timer features: built-in clock, red light signal, grooved upper surface
• Operation: Touch-screen selection of shelf life
• Data output: No analytical data (standalone)
• Retrofit: Compatible with existing conveyor systems
• Main benefits: automates removal of expired plates, reduces manual checks, eliminates placement errors
