Product Name
Food Delivery Robot (FDR)

Overview

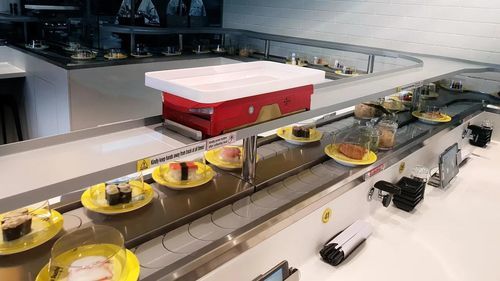

The FDR is a track-configurable food delivery robot designed for contactless transport of dishes in restaurants, cafés and buffet systems. It integrates magnetic guidance and a modular track to fit layouts such as kaiten sushi, hotpot, pizza bars and dim sum services.

Safety Features

• Safety sensor with LED and buzzer to alert customers.
• Front and rear mechanical bumpers that stop the unit on impact.
• Front and back proximity sensors for obstacle detection.

Operation

• Prepare and place food on the delivery platform.
• Select destination table via control interface.
• Robot follows magnetic track and notifies arrival with LED and voice.
• Return by touch-button or automatic plate-sensor detection.

Track Configuration
The track is modular and can be custom-designed for the venue. Available elements include L bend, T bend, right/left R bend, straight sections and custom bends.

Colour Options
Finish can be specified from the Pantone range; track can be supplied in zinc with RAL 9006 powder-coat finish or customized finishes.

Technical Specifications

• Model: FDR
• Dimensions: 184 mm (W) x 378 mm (D) x 80 mm (H)
• Weight: 4 kg
• Build material: ABS plastic
• Working speed: up to 50 m/min
• Payload: 4 kg
• Charging: automatic or manual

Robot Components

• Battery: Rechargeable LiFePO4 (Lithium Iron Phosphate), 6000 mA·h
• Power consumption: average 10 W
• Motors: 2 × 4W servo motors (origin: Germany)
• Guidance: magnetic markers
• Return mechanism: touch button or plate-sensor automatic detection

Control System
Main board: single PCB assembly. Compute module: Raspberry Pi Compute Module 3+ (BCM2837 up to 1.2 GHz, 1 GB RAM).

Charging System
Input: AC 110–240 V, 50/60 Hz. Output: 24 V 2.0 A. Charging indicator: red LED.

Connectivity
Wi‑Fi: 802.11n (2.4 GHz), security WPA2.

Notifications & LED Indicators

• Side LED illumination and WAV voice files for notifications.
• LED colors: Red = alert, White = moving, Orange = food arrival.

Track Materials & Finishing

• Track material: zinc with RAL 9006 powder-coat as standard.
• Custom finishes available on request.
