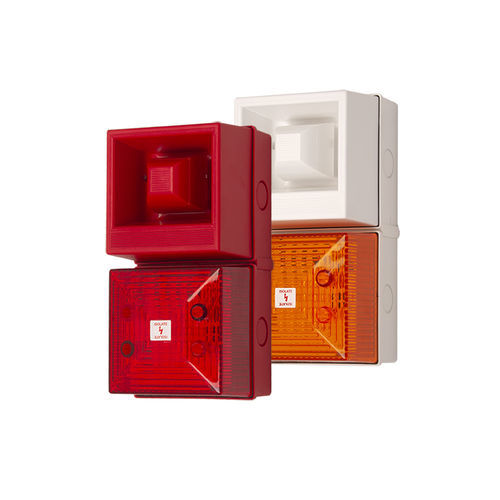

Electronic siren YL40 Serie (108dB)

impact-resistantweather-resistantIP65

Multi-purpose Audible & Visual Signalling Device designed for use in Commercial, Light Industrial & Marine applications. - Max sound output: 108 dB (A) / 1 m - IP65 rated as standard - Beacon options include: - High Brightness LED - 5 Joule Xenon Strobe - 2.5 Joule Xenon Strobe (optional) - 32 selectable tones meeting international regulations - Flame retardant ABS enclosure - Robust, reliable and simple to install - Independently selectable second stage - Stainless steel fixings - 2 stage alarm - Low current consumption - Lens available in 8 colours Material - Flame retardant ABS enclosure Approvals & Conformities - BS EN 54-3 - UKCA, CE, EU MED & UK MER Product Variants - Enclosure Colour: Red Normal (RN) RAL 3001 or White Normal (WN) RAL 9003 - Operational Voltage: 24vDC, 48vDC, 115vAC, 230vAC - Lens Colour: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta - Effective Candela (cd): varies by model and lens colour - Order Numbers and Article Numbers: see full table for all combinations - Weight: 0.51 kg or 0.57 kg depending on version Certifications - Kite Mark - UKCA - Med-Mar Eq Product Tones - 32 selectable tones, including: Alternating (800-1000 Hz), Security Alarms (2500-3100 Hz), Continuous note (700 Hz, 1000 Hz, 2300 Hz, 440 Hz), Interrupted tone (1000 Hz, 420 Hz, 2500 Hz, 700 Hz), and more. Special applications include Fire Alarms, Security Alarms, AFNOR France (NFS 32001), Turn-out Sweden, All-clear Sweden, AS2220 Australia, Pre-vital mess Sweden, etc. Technical Drawings - Dimensional Drawing Front & Side available Downloads - Datasheets available in English, French, German, Spanish, Italian - Installation Sheets available in English, French, German, Spanish, Italian - CAD File available - CE DoP Certificate available Characteristics / Technical Specifications - Max sound output: 108 dB (A) @ 1m - IP65 rated - Beacon options: High Brightness LED, 5 Joule Xenon Strobe, 2.5 Joule Xenon Strobe (optional) - 32 selectable tones - Flame retardant ABS enclosure - Stainless steel fixings - 2 stage alarm - Low current consumption - Lens available in 8 colours - Weight: 0.51 kg or 0.57 kg - Certifications: BS EN 54-3, UKCA, CE, EU MED & UK MER
