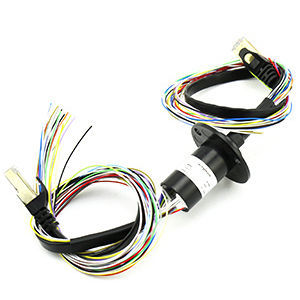

Ethernet slip ring ME1222 Series

hydraulicmilitarywire

ME1222,support 1 channel 1000M base T Ethernet slip rings, with compact OD 22mm,flange mounting, can transfer 100M/1000M Ethernet signal，which is stable ，no packet loss，not string of code，small return loss，low insertion loss ，strong anti-jamming capability ,also can mixed with electrical power and signal channel，military plating technology ，Super low BER error rate. 1)The operational life of the unit is dependent upon rotational speed, environment and temperature. 2)Lead Wire size: signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code. 3)Electrical noise is dependent upon the rotating speed and current,voltage. ① The wiring mothed and length can be customized for both rotor and stator. ② Because of the structure limitation,length/height/OD can be customized on you request. ③ Support over 300 rings of current and signal. ④ Aviation plug,Terminal and Heat-shrink tube can be selected. ⑤ Hybrid slip ring for Yaskawa/Panasonic /Siemens servo control signal,main power,encoder ⑥ Support mixed high speed data transmission(including Ethernet,USB,Profibus,Ethercat,CANOPEN,CANBUS,RS232,RS485). ⑦ Mixed Temperature control signal and Thermocouple signal ⑧ Special environment customize for quakeproof and high temperature. ⑨ Hybrid Pnuematic/Hydraulic +electrica slip ring. ⑩ Max. Temperature :500℃. ⑪ Max.Voltage:110kV. ⑫ Max. rotating speed :10000RPM. ⑬ Max.current:5000A. ⑭ Military grade. ⑮ Options:Aqua mode，IP65 or IP68 . ⑯ Stainless steel Housing.
