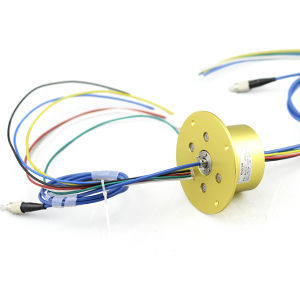

Ethernet slip ring MFO102 Series

USBfiber opticPROFIBUS

MFO102 series is hybrid slip rings, It can combine 1 channel optic fiber with electrical 1~30 circuits power/signal(2A), Hybrid FORJs combine an electrical slip ring with a fiber optic rotary joint, allowing electrical, power and optical signal transfer through a single rotational joint. While fiber optics are becoming the medium of choice for signals due to large bandwidth, immunity to EMI and high reliability, it is acknowledged that rotary interfaces must also carry electrical power. ① The wiring mothed and length can be customized for both rotor and stator. ② Because of the structure limitation,length/height/OD can be customized on you request. ③ Support over 300 rings of current and signal. ④ Aviation plug,Terminal and Heat-shrink tube can be selected. ⑤ Hybrid slip ring for Yaskawa/Panasonic /Siemens servo control signal,main power,encoder ⑥ Support mixed high speed data transmission(including Ethernet,USB,Profibus,Ethercat,CANOPEN,CANBUS,RS232,RS485). ⑦ Mixed Temperature control signal and Thermocouple signal ⑧ Special environment customize for quakeproof and high temperature. ⑨ Hybrid Pnuematic/Hydraulic +electrica slip ring. ⑩ Max. Temperature :500℃. ⑪ Max.Voltage:110kV. ⑫ Max. rotating speed :10000RPM. ⑬ Max.current:5000A. ⑭ Military grade. ⑮ Options:Aqua mode，IP65 or IP68 . ⑯ Stainless steel Housing.
