Hydraulic torque wrench LCVadjustable
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Other characteristics
- adjustable
- Torque
Max.: 49,900 Nm
(36,804.4 ft.lb)Min.: 190 Nm
(140.1 ft.lb)- Length
Max.: 353 mm
(13.9 in)Min.: 107 mm
(4.2 in)
Description

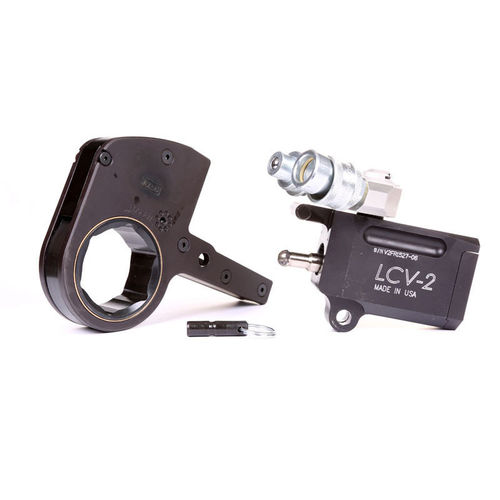

LCV – LOW PROFILE TORQUE WRENCH
LCV has a low profile which improves accessibility in confined spaces.
LCV-tool consists of two parts:
The drive unit / Powerhead.
The ratchet link.
All pumps are delivered with oil, a hose (4,5 m) and couplings for one tool.
With an adjustable regulator the pressure is set to requested level.
MEP 230 is equipped with oil cooler to control the temperature when tightening big amount of bolts.
lengths – choose the one that suits your tools.
The drive unit can be used together with several sizes of ratchet links.
Ratchet links with extra small radius are available as “special”.
Seven models up to 50,000 Nm.
Catalogs
HYDRAULIC BOLTING TOOLS
24 Pages
