rugged data-logger / temperature / USB / without display



  • Measured quantity:


  • Connector type:


  • Display:

    without display

  • Applications:

    for food applications, for pharmaceutical products, for refrigerators

  • Other characteristics:

    compact, battery-powered, rugged, submersible, IP68

  • Memory capacity:

    32,000 unit

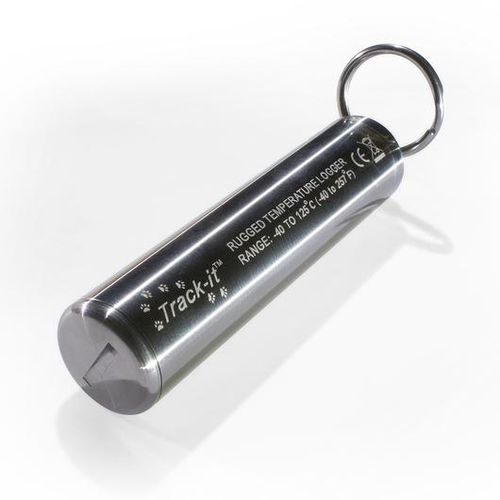

Track-It™ Rugged Temp Data Logger
PN: 5396-0105
Data Logger, Battery, USB Interface Cable and Track-It™ Software Download
The Track-It™ Rugged Temperature Data Logger is a submersible battery powered stand alone compact data logger that records up to 32,000 samples of temperature data. The wide temperature range and stainless steel IP68 packaging make it versatile and rugged enough for the more strenuous temperature logging applications. Moisture, corrosion, and force are prevented from affecting your measurements, as well as shallow submersion. The unit is easily configured using the included Track-It™ Software.
Simply connect the logger to an open USB port on your PC and the software automatically identifies the logger. Use the internal push button to start and stop recording and check status or configure the unit to start recording immediately, start and/or stop at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery.
Typical Uses
•Oil and Gas
•Transportation/Cold Chain
•Push button or program to start recording
•Up to 32,000 samples per record
•Alarm set points
•Small compact size
•Integral USB interface (no custom cable!)
•Interactive software (included!)
•Three year battery life (battery included!)
•N.I.S.T. calibration (optional)
•Wide temperature range –40 to 257F/125C
