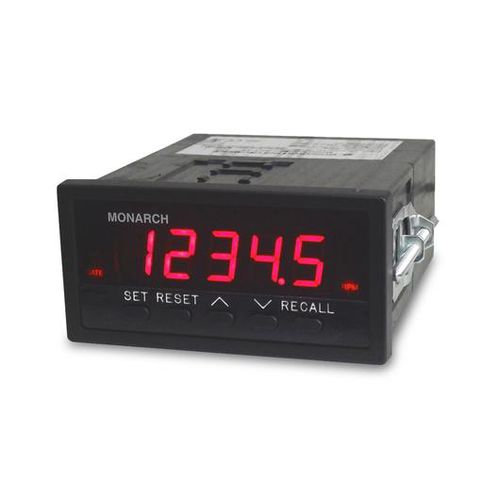

Non-contact tachometer ACT-3X

panel-mountwith LED display5-digit

The ACT-3X Panel Tachometer is a powerful NIST calibrated, fully programmable tachometer and totalizer. It accepts inputs from all Monarch speed sensors or from any standard TTL generating device. The unit operates from 120/240 V ac input power or from 12 or 24 V dc input power (optional). Programming is easily performed through the 5 front panel pushbuttons or using the free downloadable PM Remote Software. Set up for single-channel monitoring. Programmable scale factor with menu selection for multiple pulses per revolution, linear rates, single event trip speeds (using auxiliary input), and rate of change in RPM. A TTL pulse repeater output is standard. Recommended sensors with PN -W (= tinned leads), ROS-W, ROS-HT-W-25, P5-11, PS-12, M-190W, IRS-W, ROLS-W, RLS-W, SLS-115/230, CSLS, and GE-200HP Gas Engine Sensor (with amplifier). All models - Universal Input, non-contact operation from optical, infrared, laser, proximity, and magnetic sensors or direct TTL and 200 mV to 50 V ac signals ACT-3X Panel Tachometer 1/8 DIN sized 5-digit LED display 5 to 999,990 RPM range Universal sensor inputs NIST Traceable Certificate included User-configurable with front panel pushbuttons or free downloadable PM Remote Software View real-time data on PC* Record data in .CSV format in real time* Universal ac power 100-240 V ac, 50/60 Hz or optional 12 or 24 V dc power Standard pulse repeater output Single event capture from start-stop pulses, in units such as MPH, CM/sec, etc. using two sensors - for the linear rate of travel on the second input channel Optional 4-20 mA or 0-5 V dc scalable output
