Liquid vessel PCN-O-BRK seriesstainless steelpressurestorage
Add to favorites
Compare this product
Characteristics
- Product applications
- for liquids
- Material
- stainless steel
- Type
- pressure
- Function
- storage, for lifting
- Applications
- for food applications, for pharmaceutical applications, for chemical applications, industrial, for the cosmetics industry
- Capacity
20 l, 30 l, 40 l, 50 l
(5.283 gal, 7.925 gal, 10.567 gal, 13.209 gal)- Pressure
Min.: 0 MPa
Max.: 0.2 MPa
Description

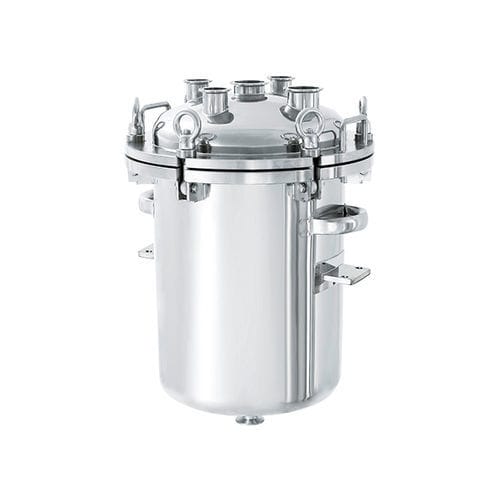

Stainless steel container with bracket that can be attached to a stand or device.
Straight type pressure vessel with the same bore diameter and inner diameter.
○The container can be attached and detached according to the work.
○The container comes with a bracket (mounting support) that can be incorporated into part of the device.
○The bracket has two holes so that it can be fixed with screws, etc.
○40 L and 50 L containers have metal fittings (holes) for lifting.
○Containers and brackets can be custom-made.
Container Body/Lid/Handle ... SUS 304
O-Ring ... Silicon Rubber
Hanging Lug (40, 50 sizes only) ... SUS 304
●Surface Treatment: Inner and Outer Surface 0.2Ra
There are also products with a stand. ([PCN-O-ASC])
