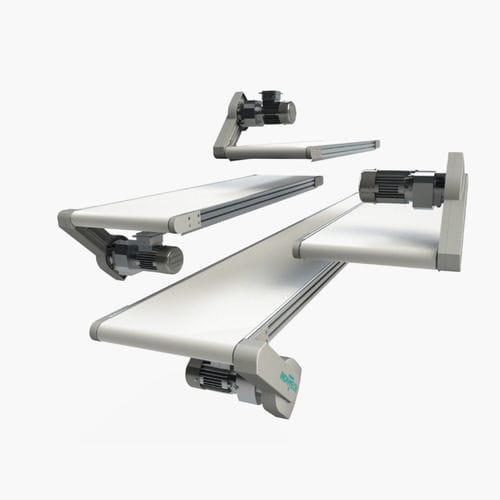

Belt conveyor GTB series

horizontalelectric driveconstruction

GTB Max Conveyors are used to carry parts to or from various manufacturing stations, or they can be combined with other units to form complete transport systems. The system's modular construction allows for simple adaptations to meet specific customer requirements. The following chassis widths are available: 200, 300, 400, 500, 600, 700 and 800 mm. The possible belt lengths are between 1 m and 6 m. The conveyor is driven by a 230/400 V spur gear motor with big power reserves. This enables transportation of up to 125 kg in conveying mode. Depending on the amount of available space, the end drive version can be fitted above or below the belt. The top drive version can transport products up to 80 mm high. The belt speed can be altered by simply exchanging sprockets and chain or with the aid of a frequency converter, if variablespeed is requested. Conveyor products are complemented by our full range ofaccessories and special fittings (dependent on the chassis widthselected). This includes various belt types for different applications, stands and lateral guides. Accessories can be included in the future easily, quickly andwithout mechanical processing.
