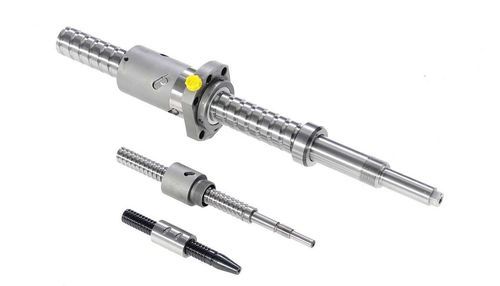

Metal ball screw

precisionhigh-performancehigh load capacity

Overview
Flexible design for machine builders across multiple industries. These ball screw assemblies are engineered to meet varied application requirements with configurable diameters, leads and lengths.

Benefits and features

• ISO 3408 classes 1, 3, 5, 7
• Diameter range: 12 mm (0.47 in) to 100 mm (3.93 in)
• Lead (pitch): 1.5 mm (0.06 in) to 80 mm (3.14 in)
• Maximum length: up to 6200 mm (244 in)
• Load capacity:
  • Dynamic load: up to 1450 kN
  • Static load: up to 3300 kN
• Acceleration capability: 10–30 m/s²
• Available in single-start and multi-start versions

What is a ball screw?
A ball screw is a rolling-element system composed of a threaded shaft (screw) and a nut with internal threads that contain circulating balls. The balls circulate in the nut via one or more return elements (e.g., ball returns), allowing low-friction linear motion. Functionally it is similar to a bearing where balls run in one or more helical tracks.

Technical specifications

• ISO classes: 1, 3, 5, 7
• Diameter: 12 mm to 100 mm (0.47" to 3.93")
• Lead (pitch): 1.5 mm to 80 mm (0.06" to 3.14")
• Maximum length: up to 6200 mm (244")
• Dynamic load capacity: up to 1450 kN
• Static load capacity: up to 3300 kN
• Acceleration: 10–30 m/s²
• Available variants: single-start and multi-start
