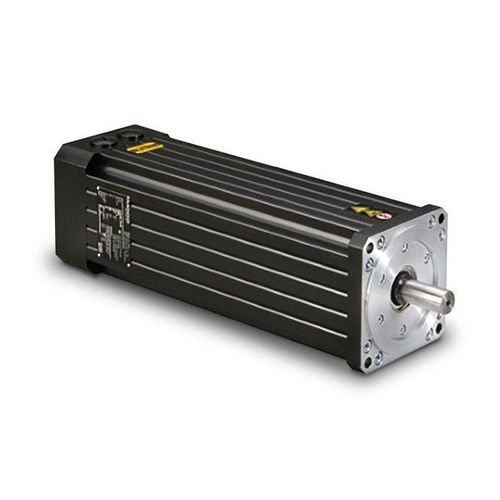

The explosion-proof dynamic brushless Moog ExD servo motor (Explosion Proof Dynamic Brushless Servo Motor) is an AC synchronous motor specifically designed and certified for use in potentially explosive environments. The ExD series complies with ATEX and IECEx standards and is built from robust components able to withstand demanding thermal conditions. High-reliability resolvers, sealed lifetime-lubricated ball bearings, precision-balanced rotors (ISO 1940 Grade G 6.3) and an IP67 enclosure design ensure maximum product service life.

Features

• Explosion-proof: ATEX, IECEx, NEC, KOSHA, TRCU and CCC Ex certified
• AC servo motor (synchronous)
• Low mass moment of inertia
• Convection cooling

Markets and applications

• Oil and gas production
• Power generation
• Mining
• Industrial production machines operating in atmospheres containing flammable or explosive vapors or gases

Benefits

• Compact, lightweight construction
• High dynamics for shorter cycle times
• Low torque ripple
• Robust design for reduced maintenance
• Modular servo motor concept for flexible configurations

Specifications (table)
Dimension | Unit | Explosion protection
Standstill torque M° | Nm [lb-in] | 0.52 - 66 [4.6 – 590]
Peak torque Mmax | Nm [lb-in] | 1.6 - 240 [14.2 - 2118]
Rated speed nN | min-1 [rpm] | 7800 - 2000
Rated power PN | kW [hp] | 0.359 – 8.378 [0.5 – 11.2]
Rated torque MN | Nm [lb-in] | 0.44 – 40 [3.9 – 354]
Moment of inertia J | Kg·cm2 [lb·in·sec2 x10^-4] | 0.16 - 157 [1.4 – 1389]
Feedback | Standard / Optional | Resolver / Encoder
Temperature monitoring | N/A | PTC or NTC
Brake | N/A | Optional
Rated bus voltage VDC | V | 325/565
Certification / marking | N/A | IECEx/ATEX/NEC/KOSHA/CCC Ex/TRCU
Cooling | N/A | Convection

Technical characteristics / specifications

• Series designation: ExD series
• Motor type: AC synchronous servo motor (brushless)
• Explosion protection: ATEX, IECEx, NEC, KOSHA, TRCU, CCC Ex
• Ingress protection: IP67
• Standard feedback: Resolver; encoder optional
• Temperature monitoring: PTC or NTC (optional)
• Brake: optional
• Sealed lifetime-lubricated ball bearings
• Rotor balancing to ISO 1940 Grade G 6.3
• Moment of inertia range: 0.16 – 157 Kg·cm²
• Torque ranges: Standstill 0.52 – 66 Nm; Rated torque 0.44 – 40 Nm; Peak torque 1.6 – 240 Nm
• Rated power: 0.359 – 8.378 kW
• Rated speed range: 2000 – 7800 min⁻¹ (rpm)
• Rated bus voltage: 325 V / 565 V DC
• Cooling: Convection
• Modular design for adaptation to different applications
