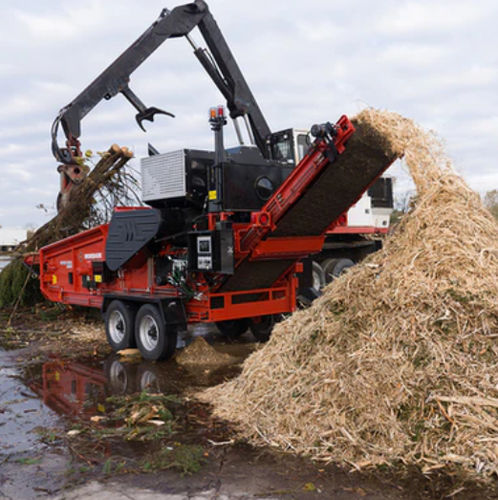

Ideal for niche markets like municipal recycling, pallet recycling, lot clearing, nurseries and tree care debris, the Morbark 2400X Wood Hog Horizontal Grinder is perfect for processing yard waste, brush and other mixed woody feedstock into saleable product. Designed to be modular and available in multiple configurations for various applications, this grinder can take your business to the next level.
MORBARK INTEGRATED CONTROL SYSTEMS (MICS)
Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
GRATE SYSTEM
Single side-load grate system and single side-load anvil allow for single‑person removal.
BELT TENSIONING
Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine.
FOLDING INFEED TRAY
Manual folding infeed tray is adjustable to various positions; adds 3' (0.91 m) to infeed length when open or close to contain small material
HAMMERMILL SYSTEM
Large, 22" x 49.25" (55.88 cm x 125.1 cm) downturn hammermill system with eight 1.25" (3.18 cm) diameter rods and 22 forged heavy‑duty hammers with replaceable inserts; this proven design improves feeding characteristics and provides easy maintenance and durability.
TOP FEED ROLL
20” (50.8 cm) diameter top compression feed roll, with internal drive motor and hydraulic lift yoke, raises to 32 1/16" (812.44 cm), improves the feeding characteristics and reduces maintenance.
OPTIONAL TRACKS
Optional Caterpillar 308 track undercarriage with 450mm grouser pads
