Olive oil production line SINTESI 400

continuous

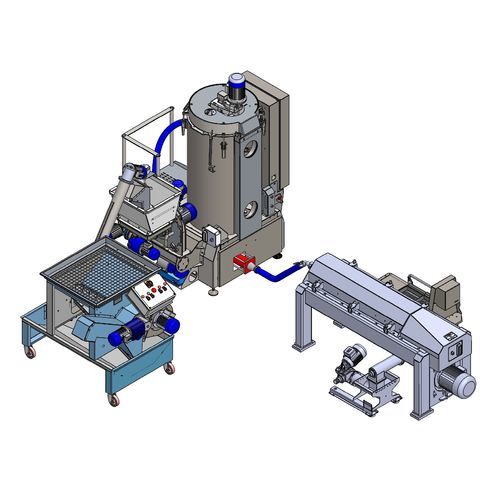

The SINTESI 400 olive oil plant is composed of the knives crusher unit with a mechanical speed change gear on the olives feeding auger, 250 mm diameter grid with cleaner, vertical malaxer and electric panel with temperature controller and printer. The vertical malaxer works continuously and is equipped with a vacuum pump for mixing with a low pressure with inlet from the top and exit at the bottom through a PSS.1 transfer pump. The electrical panel is mounted on the crushingmixing unit and is equipped with an inverter to change the speed of the crusher and the speed of the paste-filling pump. The horizontal decanter can be mounted close on the same monoblock on wheels, or separate with anti-vibration feet; it has been developed to achieve maximum performance with the highest quality; the 2.0 auger was designed for getting a cleaner product without the addition of water; there is no temperature increase in extraction. It also features the PSS.1waste discharge pump on the decanter. In conclusion we can affirm that the SINTESI systems allow to extract a great product, taking advantage of the support that only our company can provide during all the processing phases: this makes the difference. It is advisable to combine the Sintesi with the DLE Mini leaf remover and the CPF.1 oil collecting vat with a 20×20 plate filter. Standard voltage: 380V 50Hz (5-poles 32A SOCKET)
