Tower crane RTM seriesfixedfor constructionlifting
Add to favorites
Compare this product
Characteristics
- Configuration
- fixed
- Structure
- tower
- Operating environment
- for construction
- Applications
- lifting
- Other characteristics
- with counterweight
- Load
Max.: 16 t
(17.6 us ton)Min.: 5 t
(5.5 us ton)
Description

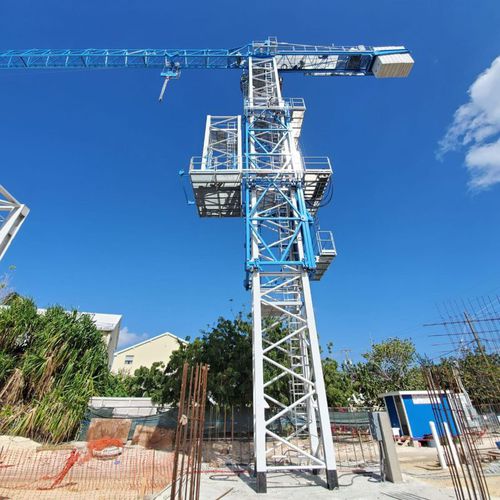

RTMs are a range of tower cranes designed to be fully flat-top.
They have a maximum lifting capacity of 6 to 16 Tons and their jib length varies between 50 and 75 meters.
RTMs are designed to grant a fast and safe assembly, since we keep rental companies in our minds also during the design phase.
The counter-jibs developed by Moritsch Cranes are fully pre-assembled in the factory.
The lifting and trolley hoists, galleries and handrails are all pre-assembled to grant a safe loading and assembly.
The trolley hoist is pre-assembled in the factory and positioned in the first jib section, which is welded to the rotation group. In this way, it takes only a couple of pulls with the truck crane and the whole rotating section is assembled, up and running.
