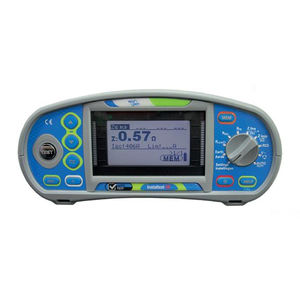

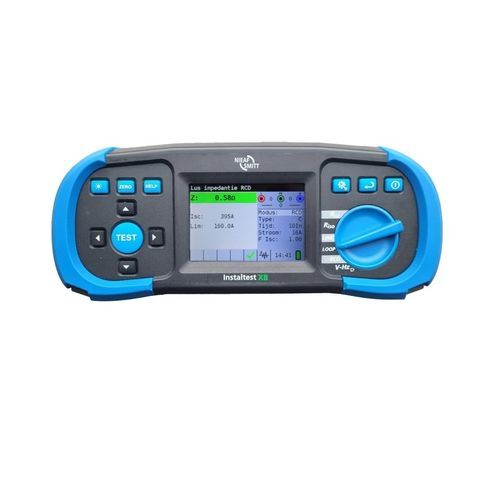

Insulation tester Instaltest XB

voltageACRCD

The Instaltest XE is a compact and easy to use installation tester combining EN 61010 and EN 61557. The tester has a huge number of features, each driven by separate accessories. The user selects a measurement easily using the rotary switch. The selected test is also clearly displayed in the large LCD display. Trip time and contact current of the RCD, impedance testing, insulation resistance and phase sequence are some of the functions. Measurements • Insulation resistance • Continuity • Contact voltage • Trip time of RCD • Automatic RCD test • Trip current of RCD • Earthloop impedance without tripping RCD • Phase rotation • Line impedance (Z-line) • Earthloop impedance (Z-loop) • Voltage Specifications Functies : : Insulation resistance 50, 100, 250, 500 and 1000 V : 0.00...999 MΩ Continuity Test current 200 mA (LPE, NPE) : 0.00...1999 Ω Nominal voltage : 93...266 V / 45...65 Hz RCD trip current : 10, 30, 100, 300, 500, 1000 mA RCD contact voltage : 0.0...99.9 V Test current : < 0.5 x IΔn RCD trip time : 0...999 ms Test current RCD : 0.5 xIΔn / 1x IΔn / 2x IΔn / 5x IΔn Type RCD : G, S, PRCD Current type : AC / A / F Loop : 0.00...9.99 kΩ Line : 0.00... 9.99 kΩ Voltage : 0...550 V Frequency : 0.00...999.99 Hz Phase rotation : 100...550 VAC General : : PC interface : USB/RS232 Overvoltage category : CAT III 600 V Protection : IP40 Supply : 6xLR06 AA batteries Dimensions : 230 x 115 x 103 mm Weight : 1.3 kg (excl. batteries) Including : Manual, strap, RS232 and USB cable, InstalLink Pro software. quickstart manual. rechargeable batteries, charger, alligator clamps
