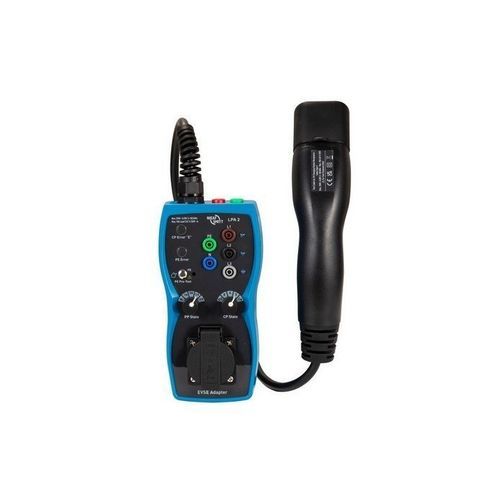

Test power adapter LPA 2

EVSEsafety

The LPA 2 is an adapter for interfacing Electric Vehicle Features Supply Equipment (EVSE) to test socket of installation tester for verifi cation of electrical safety and functional testing. It is intended for testing Mode 3 EV supply equipment with type 2 connector. The LPA 2 adapter allows you to conduct tests in combination with appropriate test instruments like an installation tester (for example Instaltest XB) Functions • • PE Pre-Test • • Proximity Pilot (PP) state “Cable Simulation” • • Control Pilot (CP) state “Vehicle Simulation”: • • Various charging states can be simulated. • • Simulation of CP error “E” • • Simulation of PE error (Earth fault)
