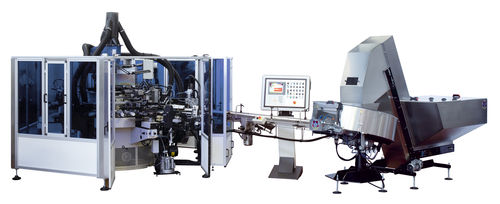

Automatic screen printer MS 1030

3-colorfor electronics

Automatic silk-screen printing machine available from 1 to 3 colours for the decoration of cylindrical, elliptical, conical and rectangular containers. Equipped with 36-station indexing turret. Maximum mechanical speed 60 ppm. 36-station rotating turret with indexing movement; up to 3 printing heads, placed at 120 to each other, which function simultaneously and are driven by a single mechanical control printing heads adjustable in height by means of a single control; double squeegee, for both printing and ink recovery, electro-pneumatic control with vertical movement; control of all machine and accessory functions by a PLC with digital Bus Field system; no container, no printing device; device for inflating those containers which are not enough stiff to be decorated, complete with manometer and pressure regulator; speed variator with 3-phase motor and electronic control of number of revolutions by means of an inverter; automating loading and unloading devices; flame pre-treatment with electronic flame detection; automatic register device; UV lamp curing with electronic control.
