Water cooler G058-235-1/CC32
oilfuelcompact

water cooler
water cooler
Add to favorites
Compare this product


Characteristics

Material
water, oil, fuel
Other characteristics
compact, pressure
Maximum temperature

85 °C
(185 °F)

Flow rate

Max.: 145 l/min
(38.305 us gal/min)

Min.: 55 l/min
(14.529 us gal/min)

Description

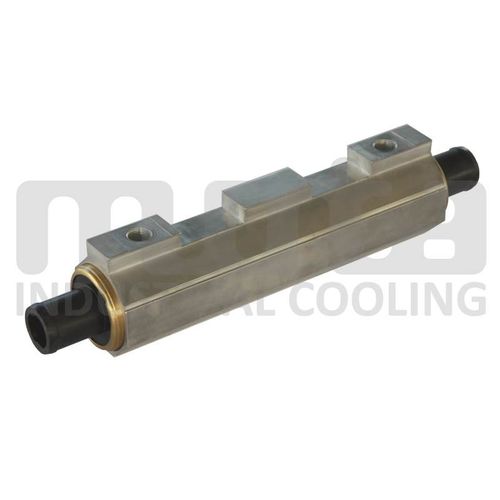

"G" range oil cooler with Ø58mm diametre, 235mm length, cold side connection for Ø32mm hose. Extruded aluminium housing, Copper-Nickel tubes. More info This heat exchanger has been initially designed to cool marine gearboxes, meaning it is highly resistant to pressure and completely compatible with sea water. Usually installed on inverters mounted with engines up to 320hp. MOTA design ensures that this cooler will not experience thermal expansion stress providing extended longevity. Its characteristic and material choices also allow it to be an excellent choice for all other types of applications: engine oil cooling diesel fuel cooling hydraulic oil cooling or heating Installation is very quick and easy provided by simple hose connections on the cold side and standard threaded connections on the hot side. All heat exchangers provided by MOTA deliver our highest standard heat rejection: high density tubestack allows a very compact heat exchanger with high performance.
