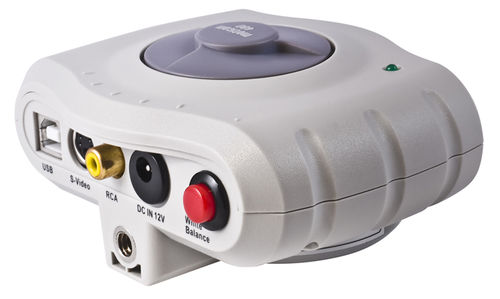

Microscope camera Moticam 480
monitoringmonochromeCCD

microscope camera
microscope camera
Add to favorites
Compare this product


Characteristics

Applications
for microscopes
Function
monitoring
Spectrum
monochrome
Sensor
CCD

Description

The Moticam 480 represents the ultimate in flexibility when it comes to choosing a microscopy camera solution. Attach this camera to your microscope's eyepiece or to a trinocular port and view live images on a PC, Projector or a TV Monitor simultaneously thanks to the 480's triple output: USB Digital (640x480 pixels) S-Video (480 TV Lines) RCA (480 TV Lines) Hardware-wired White Balance ensures accurate colour representation for professional applications. When connected to a computer, the Moticam 480 becomes an instant Digital Microscopy workstation with Motic"s Images Plus 2.0 ML application software. Analogue/digital camera CCD 1/3" Digital resolution: 720x576 pixels with USB2.0 output Analogue resolution: Max. 550 TV lines resolution S-Video & RCA Focusable macro lens 12mm 28, 30, 34 and 35mm microscope eyepiece couplers Motic Images Plus 2.0 for PC and MAC Calibration slide and USB, S-Video & RCA cables

Catalogs

GM 168
GM 168
2 Pages
