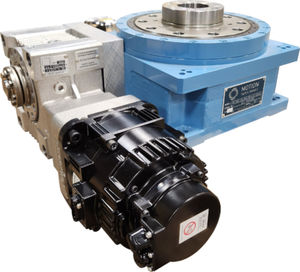

Motor-driven rotary indexing table tiltingcam
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- tilting
- Other characteristics
- cam
Description
The Motion Index Drives RTX Series Fixed Rotary Index Table is our small to medium size series fixed cam indexers. The RTX350 up to our RTX900 are well suited for rotary indexing table applications that are a few inches in diameter up to 86 inches in diameter. RTX Series fixed rotary index tables are offered in a fixed number of stations from 2 to 108. Our fixed rotary index drives are constructed with strength and reliability in mind. Robust design and components ensure this device will maintain precision in intense factory settings.
RTX Series Fixed Rotary Index Tables RTX350
Torque on Output Flange (Nm) 376
Indexing Accuracy in Angular Seconds (")* ±45
Axial Force on Output Flange (Nm) 11
Radial Force on Output Flange (kNm) 10
Tilting Moment on Output flange (mm) 0.6
Runout on the output flange (mm) 0.01
