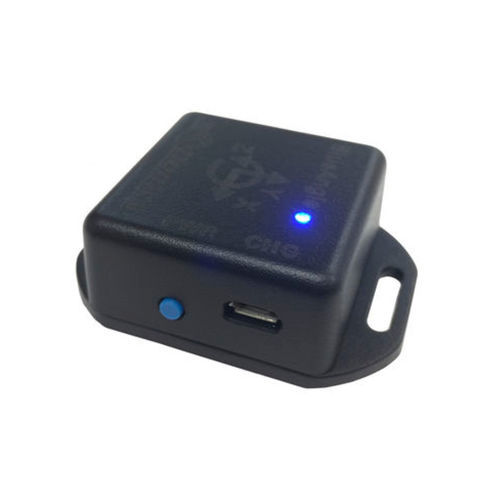

Bluetooth angle gauge BlueAngle

wirelessdigitalcomputerized

Overview
BlueAngle is a gyroscope-based Bluetooth angle sensor designed to attach easily to a rotor via its magnetic base. While rotating with the rotor, BlueAngle measures the rotating angle and wirelessly transmits readings to an iPad within a 20 meter (up to 66 ft) range at a rate of 50 samples per second. BlueAngle works as part of a Wireless Rotor Runout Kit and, together with other wireless measurement gages (for example wireless dial indicators and angle sensors), can depict the real contour of a rotor for rotor runout testing and similar applications.

Cloud / Remote Reading
BlueAngle supports remote/cloud data collection via a browser-based IoT platform. By connecting Bluetooth gages to a cloud gateway, users can view real-time readings and reading history from anywhere. Cloud features include multiple sensor connectivity, customizable dashboards, smart alerts/notifications, reading history access, remote sensor controls, and analytic tools such as treemaps, map view, and summary view. The cloud service is subscription-based.

Software

• iOS: Rotor Runout app works with wireless dial indicators and Bluetooth angle sensors for rotor runout testing.
• MultiGage Cloud: browser-based IoT platform for industrial remote monitoring, multi-sensor connectivity, dashboards, alerts and analytics.

Included

• BlueAngle x1
• USB Charging Cable x1
• USB Power Adapter x1
• User Manual x1
• Extended Warranty (Optional)

Specifications (table)
Dimensions: 1.58 x 1.58 x 0.79"
Resolution: 0.1°
Wireless Data Transmission Rate: 50Hz
Wireless Data Transmission Range: up to 66ft / 20m
Working Temperature: 32 to 122°F
Rechargeable Battery: 150mAh
Battery Life: 10hrs
Charging: 5VDC USB

Technical specifications

• Sensor type: gyroscope-based Bluetooth angle sensor
• Attachment: magnetic base for mounting on rotors
• Sample rate: 50 samples per second (50Hz wireless transmission)
• Wireless range: up to 20 meters (approx. 66 ft)
• Angular resolution: 0.1°
• Physical dimensions: 1.58 x 1.58 x 0.79 inches
• Operating temperature: 32 to 122 °F
• Battery: rechargeable 150 mAh, typical battery life ~10 hours
• Charging: 5 V DC via USB
• Integration: intended to be used with rotor runout kits and companion wireless gages and software (apps and cloud platform) for contour/rotor measurement and remote monitoring
