Monitoring sound sensor BlueDB

measurementrecordingwireless

Description

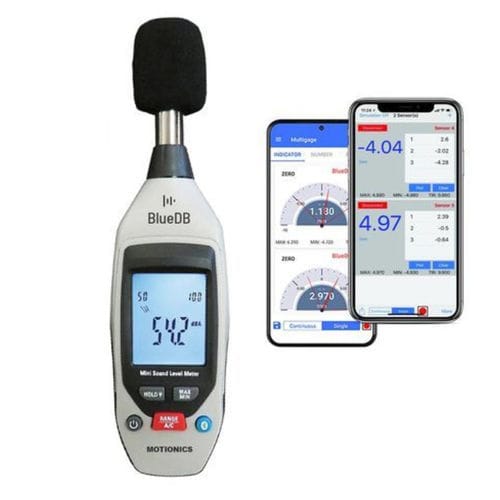

BlueDB is a compact, lightweight and easy-to-use Bluetooth sound meter designed for accurate and reliable sound measurement in the field. BlueDB is fully integrated with our MultiGage software for iOS, Android and Windows – providing seamless wireless data collection, real time monitoring, and advanced reporting capabilities.
With a measurement range between 35-130dB, and a resolution of 0.1 dB, BlueDB delivers precise sound level readings across a wide range of industrial and environmental applications. The meter supports both A and C frequency weighting scales, allowing users to evaluate sound levels based on human hearing response or peak noise characteristics.
Featuring a wireless range of up to 100ft outdoors, BlueDB ensures flexible positioning and convenient remote monitoring without the need for cables.
For added convenience in the field, pair BlueDB with a flexible magnetic stand for a handsfree sound measurement experience. BlueDB features a female 1/4-20 thread attachment on the back for easy mounting.

Software
MultiGage is a free cross-platform software that lets you read and record measurements wirelessly on iPad, iPhone, Android devices, or Windows PCs.

App Features

• Remote reading of dial from app in realtime
• Simultaneous reading of multiple devices
• Continuous or single data point recording
• Max, Min, TIR measurement
• Remote zeroing from the app
• Large analog probe meter with adjustable range
• Full-screen large digital readout on the app
• Custom formula calculator
• GO/NG judgment with green/red color indication
• Realtime cloud data streaming worldwide
• Data saving in local database
• Data export in CSV via email and cloud drives
• Apple Watch support

Included

• BlueDB: Bluetooth Sound Meter x1
• 9V Battery x1
• User Manual x1
• BLE USB Dongle (Optional, NOT Included) — Required for PC use

Specification

• Measurement Range: 35–130 dB
• Resolution: 0.1 dB
• Accuracy: ±1.5 dB @ 94 dB, 1 kHz
• Frequency: 31.5 Hz–8 kHz
• Transmission Range: 65 ft (20 m) Indoors / 100 ft (30 m) Outdoors
• Wireless Data Rate: 1 Hz
• Microphone: 1/2” electret condenser microphone
• Working Temperature: 32 to 104°F (0 to 40°C)
• Mounting Option: Female 1/4" NPT (page also references a female 1/4-20 thread attachment on the back)
• Frequency Weighting: A or C decibel frequency weighting scales
• Dimensions: 7.25" x 2" x 1.5" (185 x 54 x 36 mm)
• Weight: 6.5 oz (184 g)
