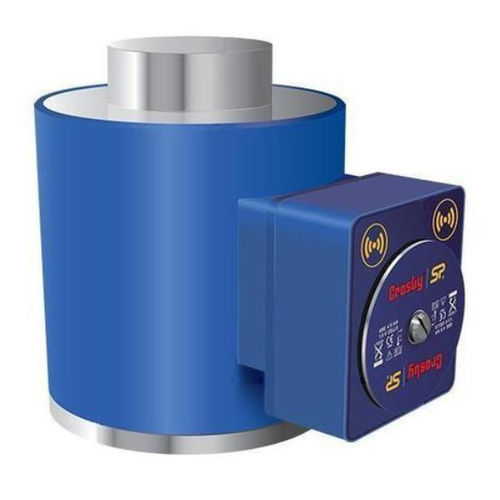

Tension/compression load cell WLG1C005

digitalwirelessIP67

Overview
Motionics' wireless load gauge combines a high-strength industrial force gauge with Bluetooth Low Energy connectivity. It connects to iOS, Android and Windows devices using the MultiGage software to read and record measurements remotely, enabling tests from hazardous or hard-to-reach locations. The WLG family supports both tension and compression measurements across multiple capacities, resolutions and accuracies. The unit features an IP67-rated enclosure and a high strength-to-weight ratio for use in demanding environments.

Software compatibility
MultiGage (iOS, Android, Windows) for wireless read/record of multiple devices; compatible with a dedicated Pile Load Test iPad app for pile testing workflows and integration with wireless dial indicators and pressure sensors.

Included

• 1x Wireless Load Gauge
• 1x Protective Case
• 4x AA Batteries
• 1x User Guide

Specifications (table)
Models: WLG-C1 (compression) and WLG-T1 (tension)
Capacity — WLG-C1: 5 t to 1,000 t (model-dependent); WLG-T1: 1,000 kg to 500 t (model-dependent)
Resolution — WLG-C1: 0.001 t to 0.5 t (model-dependent); WLG-T1: 0.5 kg to 0.1 t (model-dependent)
Accuracy — ±0.1% full scale
Wireless data rate — 10 Hz
Transmission range — up to 100 m / 328 ft
Working temperature — 14° to 122° F (-10° to 50° C)
IP rating — IP67
Battery — 4x AA
Battery life — ~500 hr

Notes
These load gauges are commonly integrated into modular pile testing kits to perform pile load tests with enhanced precision and traceable data capture. A demonstration video shows typical pile testing workflows.

Technical specifications

• Brand: Motionics
• Product family / series: WLG (Wireless Load Gauge)
• Example SKU: WLG1C005
• Capacity range: 5 t up to 1,000 t (compression) and 1,000 kg up to 500 t (tension), model-dependent
• Resolution: 0.001 t to 0.5 t (compression); 0.5 kg to 0.1 t (tension), model-dependent
• Accuracy: ±0.1% full scale
• Wireless data rate: 10 Hz
• Transmission range: up to 100 m / 328 ft
• Operating temperature: 14° to 122° F (-10° to 50° C)
• Ingress protection: IP67
• Power: 4x AA batteries
• Battery life: ~500 hours
• Typical uses: tension and compression force measurement, pile test kits and other force measurement applications
