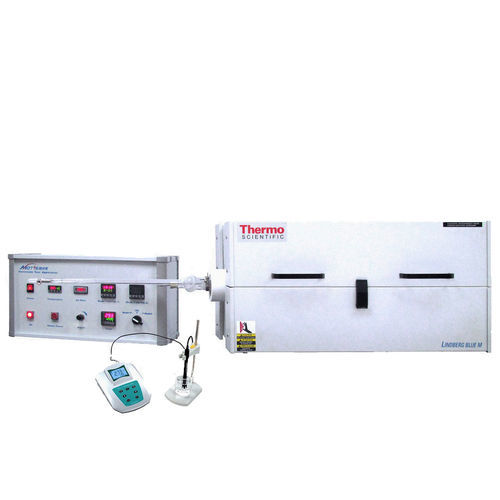

Corrosion resistance tester CTA

pHconductivitycable

The Corrosion Test Apparatus is developed to assess the amount of acid gas generated from the combustion of materials by measuring the pH & electrical conductivity. The test specimen is pushed into a tube furnace and burned for 30 minutes. The generated gases are forwarded to the wash bottles with demineralized water. The pH value and conductivity are measured. Features • Split-type tube furnaces for material combustion. - Dual shell housing made of textured stainless steel sheet. - Fan cooling for low surface temperature. - Heating temperature up to 1100°C. - Split-type design for simple insertion of the working tube. - Single-zoned design, switchgear, and control unit integrated with the furnace housing. • High temperature quartz glass tube, diameter close to the tube furnace. • Mass flow meter controls the air supply, supply flow up to 3L/min. • The airflow is displayed by a digital meter, with a resolution of 0.1L/min. • Provides a digital timer to set the air supply time. • Provides drying device to get dried air supply. • Provides 30 ceramic sample boats. • Provides magnetic stirrers. • pH Meter, measurement range from -2.00 to 19.99 pH, with an accuracy of 0.1/0.01pH. • Conductivity meter, measuring range from 0.00 to 20.00 μS/cm, with an accuracy of 0.01 μS/cm.
