MIG welding machine MSV series

MAGroboticfor beams

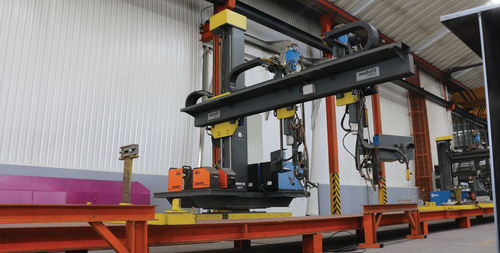

The ideal solution in MIG/MAG and SAW automated welding of beams and profiles. General Characteristics This equipment is destined to Beam Welding Automation. This machine can use MIG/MAG or SAW to weld profiles and beams of variable or constant sections with I, H and L formats. It features four components: car, column, arm and two welding heads. The car supports the structure and moves upon rails according X axis. The arm which is supported by the column and carries the welding head, moves through linear guides vertically (Z axis) and horizontally (Y axis), allowing the adjustment for a correct welding position. The column allows a rotation in 180º. The heads are equipped with an automated tracking of high-precision joint system. System drives are guaranteed by AC engines of variable speeds and high robustness. Technical data This information is specific for standard models. For information about special models, please contact us! Models - MSV2014 - MSV3014 - MSV3514 Arm's stroke (Y) [mm] - 2200 - 3700 - 3880 Column's stroke (Z) [mm] - 1400 - 1400 - 1400 Max. height [mm] - 3950 - 3950 - 3950 Length of the arm [mm] - 2580 - 4080 - 4650
