Control terminal with keyboard FS100
handheld320 x 200for robots

control terminal with keyboard
control terminal with keyboard
control terminal with keyboard
Add to favorites
Compare this product

Characteristics

Interface
with keyboard
Mounting
handheld
Resolution
320 x 200
Applications
for robots

Description

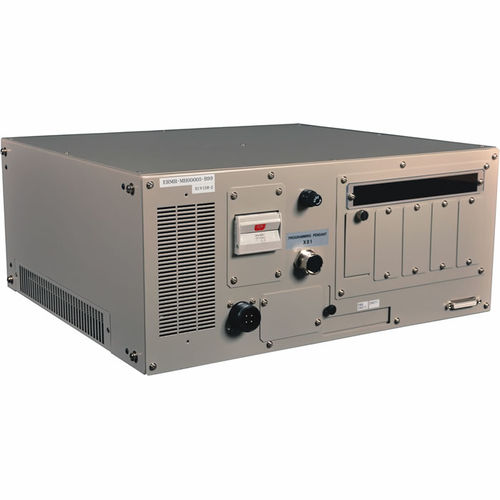

The FS100 controller is small, powerful and open. Designed for packaging, small parts handling and assembly applications, it has the performance required for high speed, discrete operations. It also has open software architecture to enable OEMs, machine builders and system integrators to develop their own customized software solutions. Designed for Motoman® robots with payloads of 20 kg and under. Space Efficient Small, compact controller 470 mm wide, 200 mm high, 420 mm deep IP20 cabinet is standard with IP54 enclosure available Controller mass is approx. 20 kg Powerful 2-4 times faster than DX100 controller Designed for packaging and small parts handling robots with payloads of 20 kg and under Compatible with integrated MotoSight™ 2Dvision (optional) Improved communication speeds and functionality High-speed I/O response and high-resolution timers Supports a wide range of communication networks Single controller supports up to eight axes: 4-axis robot + 2 external axes 6-axis robot + 2 external axes 7-axis robot + 1 external axis 15-axis robots require two FS100 controllers
