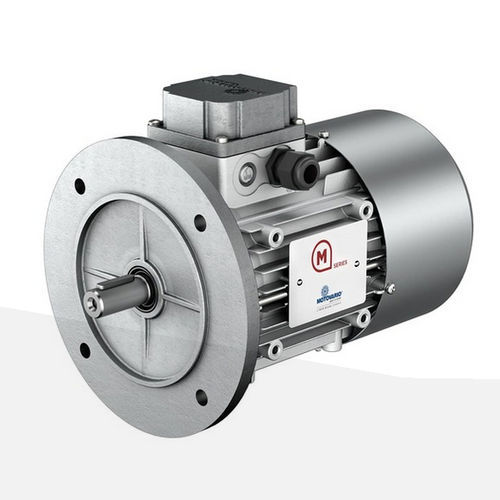

Direct current brake motor T series

three-phaseasynchronous380 V

They are the most effective and economical solution for transmissions requirements in alternating current. The three-phase motors are available as per IEC international standards from size 056 to 132 in versions with B5 and B14 flanges and B3 feet. They are available with single polarity (2, 4, 6) and with alternating or direct current brake. Characteristics Motors designed in accordance with the requirements of IEC 60034 family and relevant harmonized standards derived within the EEC External surface ventilation Aluminium or die-cast aluminium alloy cage rotor Insulation class F or H Degree of protection IP55, IP56, IP65, IP66 Unified size and shaft heights from 56 to 132 Power ratings and dimensions in accordance with IEC 60072-1 Available with mounting feet B3 or B5 with flange or B14 Polarity: 2,4,6 FM brake in DC and MS brake in AC Over-temperature compatible with Class B Altitude < 1.000 m above sea level
