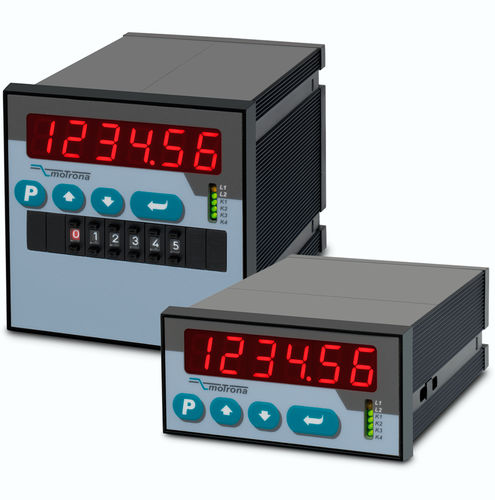

1-axis motion controller BY340/BY641

synchronization

Low-cost Controllers for Synchronizaiton. Speed ratio adjustable by keypad. • 2 pulse inputs with format A, B, 90° [HTL] or A, /A, B, /B [RS422] • 4 control inputs for HTL / PNP / NPN / Namur signals [10 ... 30 VDC] • Input frequency up to 300 kHz • 4 fast transistor outputs, with push-pull charackteristics, short-circuit-proof [5 … 30 VDC] • Scalable 14 bit analog output (±10 V or 0/4 … 20 mA) BY641: additionally with 4 relays and front-side thumbwheel
