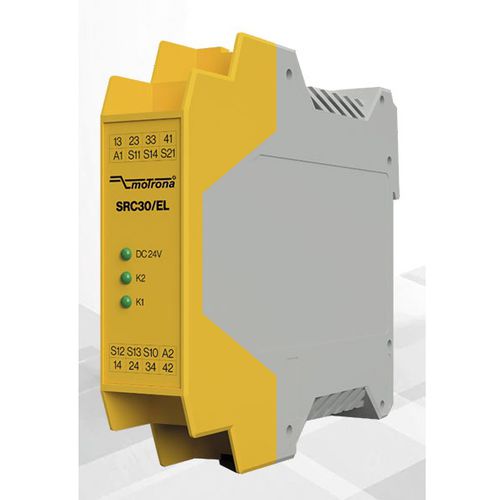

Emergency stop safety relay SRC30/EL

for safety switchfor safety gatesSIL3

The SRC30/EL stands for reliable monitoring with maximum flexibility and safety up to SIL3/PLe. Whether operated with one or two channels, with three safe relays it ensures comprehensive protection in every application. It supports a wide range of encoders, including emergency stop buttons, mechanical and non-contact safety switches as well as safety components with OSSD outputs. Thanks to its EN 81-20 and EN 81-50 certifications, the SRC30/EL is ideal for elevator monitoring. At the same time, it offers a perfect solution for use in the safety gate monitoring of machines and systems. A system that guarantees versatile safety at the highest level. • 3 instantaneous safety contacts • 1 instantaneous signaling contact • Connection of: • Emergency stop button • Mechanical safety switches • Non-contact safety switches • Safety components with OSSD outputs • Single or dual-channel operation • Feedback loop for monitoring downstream contactors or expansion modules • Cyclical monitoring of the output contacts • Display of switching status and mains via LED • Automatic or manual start • Cross-circuit and earth fault monitoring • Use up to SIL3/PLe, category 4 (EN ISO 13849-1 / EN IEC 62061 / EN 61508
