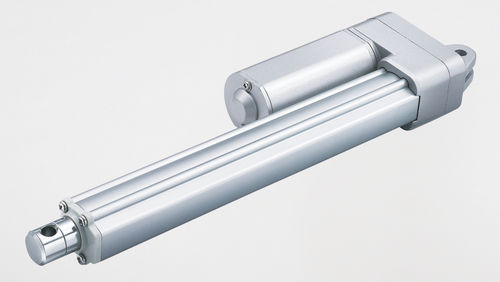

Linear actuator MLA16

electricstainless steelanodized aluminum

Low-Noise compact actuator for medical applications. Movetecs MLA16 is designed for low-noise medical applications and where a compact actuator is needed. MLA16 is available with IP54 or IP66 protection. The actuator is designed for loads of max. 3500N in push/pull. Speed up to 23,5mm/s without load (1500 N). MLA16 – high stability and a reasonable price level. Plug & Play! Plug & Play: You can also get MLA16 as a complete Plug & Play solution, including one or more MLA16 actuators, a Movetec control box 230V AC, all cables and a control panel. By selecting a control box with Bluetooth®, MLA16 are easily controlled by iPhone® or Android®-Smartphone. Material specifications: • Outer profile: Anodized Aluminium • Spindle: Carbon Steel/Stainless Steel • Spindle nut: POM Derivate • Front and rear attachments, casting/U clevis: Aluminium/steel • Actuator drive parts: Aluminium, Steel, ABS, POM, PP and others. Technical data: • Noise: Very Low-Noise • Installation length/Built-in measurement: Stroke length+min.112mm • Size: 43mm x 85mm x length • Attachment front: Aluminium casting, no slot, or U-clevis • Attachment rear: Aluminium casting, U-clevis • Front- and rear attachment holes: Ø6,4mm, Ø8mm or Ø10mm • Operation temperature: +5°C – +45°C • Power supply/Voltage: 12/24V DC • IP Rating: Without protection, with IP54- or IP66 protection • Intermittens: 25% • Double Hall-sensors: Yes • Synchronized drive: Max.12x actuators in synchronized drive
