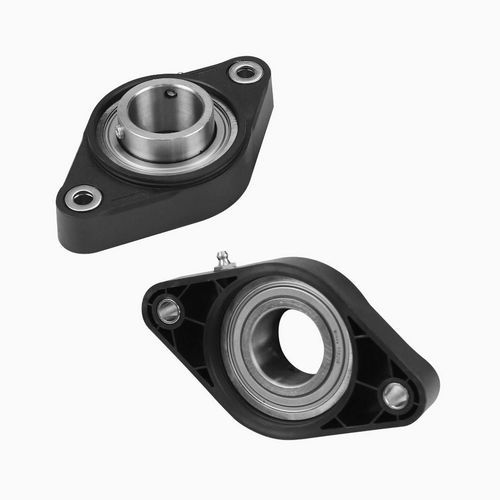

Polyamide bearing housing P801 seriesstainless steelnickel-platedchrome steel
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel, nickel-plated, chrome steel, polyamide
- Inside diameter
Max.: 40 mm
(1.57 in)Min.: 20 mm
(0.79 in)- Outside diameter
Max.: 53 mm
(2.09 in)Min.: 29 mm
(1.14 in)- Length
116 mm, 130 mm, 148 mm, 162 mm
(4.57 in, 5.12 in, 5.83 in, 6.38 in)
Description
The UCFL standard bearings - reinforced version are made in reinforced polyamide with high mechanical strength and great resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol. Bearings are made in chrome steel or in stainless steel, with 2,5° adjustment. The grease nipple is made in nickel plated steel for chrome steel bearings and stainless steel for SS bearings. They can be used at temperature between 0°C and +80°C.
