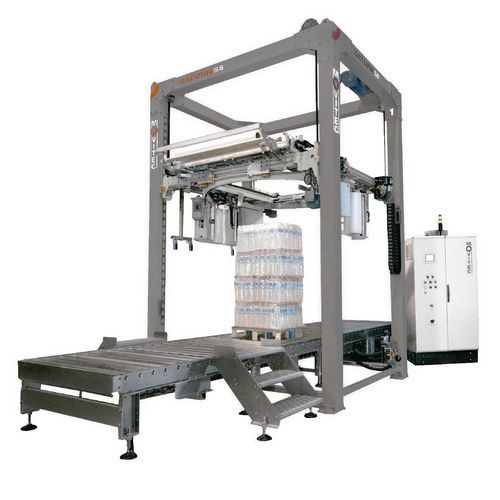

Rotary ring stretch wrapper Saturn S8
fully-automaticfor the food and beverage industrypallet

Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet
Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet
Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet - image - 2
Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet - image - 3
Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet - image - 4
Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet - image - 5
Rotary ring stretch wrapper - Saturn S8 - MOVITEC WRAPPING SYSTEMS, SLU - fully-automatic / for the food and beverage industry / pallet - image - 6
Add to favorites
Compare this product
Go to the MOVITEC WRAPPING SYSTEMS, SLU website for more information

Characteristics

Type
rotary ring
Operating mode
fully-automatic
Product applications
pallet, for the food and beverage industry
Other characteristics
stretch film, high-speed, with top sheet applicator, with top cover sheet dispenser, with corner board applicator, double-head
Height

2,600 mm
(102 in)

Width

4,100 mm, 4,300 mm, 4,700 mm, 5,000 mm, 5,100 mm
(161 in, 169 in, 185 in, 197 in, 201 in)

Length

7,000 mm, 8,500 mm, 10,000 mm
(276 in, 335 in, 394 in)

Voltage

400 V

Capacity

80 p/h, 125 p/h, 130 p/h, 150 p/h, 160 p/h

Description

Overview
SATURN S8 is a fully automatic rotary ring stretch wrapper designed for wrapping palletised loads with stretch film in high-production environments. Equipped with a double film head, it applies two film layers per ring rotation to maximize throughput without compromising industrial reliability.

Key features
  • Fully automatic rotary ring wrapper for palletised loads
  • Double film head: two layers per ring rotation
  • Production capacity up to 160 pallets/hour
  • Designed for continuous, high-speed operation with industrial reliability


Optional / Accessories (examples)
Available accessories to adapt the machine to specific packaging and load-securement needs include:
  • Independent top film dispenser
  • Motorized holding down / piston
  • Reinforcement cord applicator
  • Automatic reel change (ARC)
  • Electronic pre-stretch (EPS)
  • Corner protector applicator (ACBA)


In action (visual & multimedia)
Demonstration videos and sector-specific clips are available showing SATURN S8 operating on beverage lines, case/packs, drums and reels, and general pallet-wrapping applications.

Technical specifications
  • Machine type: fully automatic rotary ring stretch wrapper for palletised loads
  • Model: SATURN S8
  • Film system: double film head (two layers per ring rotation)
  • Maximum capacity: up to 160 pallets/hour
  • Primary application: stretch-film wrapping of palletised loads in high-production contexts

Catalogs

SATURN S8
SATURN S8
2 Pages
Saturn S6
Saturn S6
2 Pages
Saturn S4
Saturn S4
2 Pages
