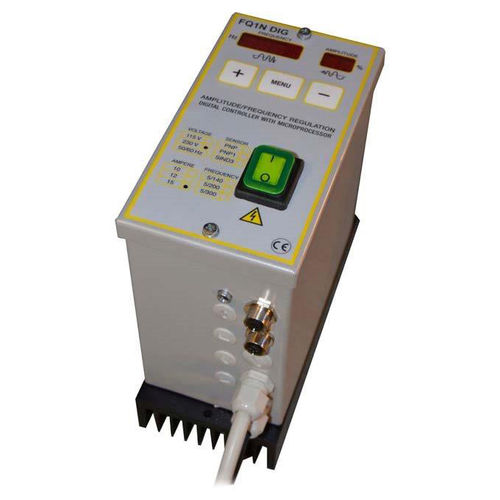

Electromagnetic feeder controller FQ1N-DIG

vibratory

Microprocessor digital professional controller with visualized frequency and amplitude – Delay 20 sec max On/Off vibrator with sensor PNP or relay contact – Automatic input 0/10V-0/20mA – Status relay – 2° PNP sensor – EV air blow – Alarm absence pieces – Lamp alarm. General Characteristics Voltage (110V) 230V, 50/60 Hz Input ON/OFF Soft/Fast ramp (0 ÷ 5 sec.) Digital Regulation amplitude/frequency min/max(5-140Hz) Digital menu Line input with schuko plug Vibrator output with connector Delay EV air blow (0 ÷ 2 sec.) Alarm absence pieces (0 ÷ 180 sec.) Lamp alarm (24Vcc). Options Personalized label Connector for vibrator SW custom. Applications Digital regulation of linear and bowl feeder till 10/12/15 Amps – The FQ1NDIG allows optimizing operation of the vibratory feeder by searching for its resonance frequency (max performance) thereby eliminating its lengthy and difficult mechanical calibration – Qualification input for multiple electromagnetic system (linear – blow feeder – hopper).
