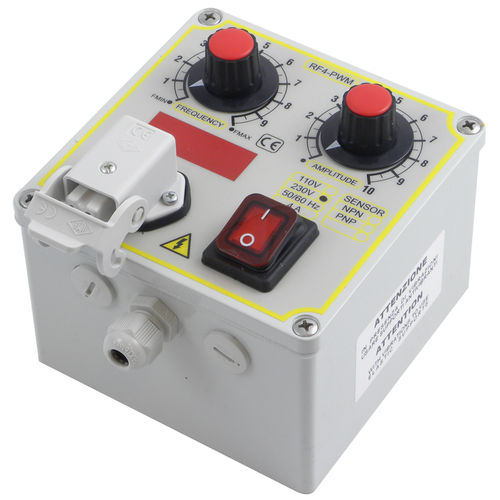

Frequency indicator controller RF4PWM

voltagetemperaturecurrent

RF4PWM is a frequency controller up to 5A. It is compact and easy-to-use, available in different configuration, with or without dispaly. Application: Conveyor and assembly automation in packaging and dosing industry. Linear vibrating feeder and vibratory bowl feeder up to 5A. Perfect for markets with different Hz without mechanical tuning. Max Output Current [A] - 5 Input Voltage [V] - 80-250 Vibration Frequency [Hz] - 30-130 Output Voltage [V] - 0-200 Stabilized vs Input Voltage - Yes Soft Start [s] - 0-3 ON/OFF - 0-24V, Dry contact Automatic Input PLC - 0-10V/4-20mA Working Temperature - -20/55°C (-4/131°F) Enclosure - Aluminum, DIN35 Protection Index [IP] - IP20, IP55 Standard Conformity - CE, EMC, Rohs Overflow Control - PNP/NPN/24V/Dry Contact T_on/T_off/T_Alarm - 0-6/0-6/0-12 Switch Off Time Air-Valve [s] - 0-2 Display - yes, no Potentiometer - yes, no
