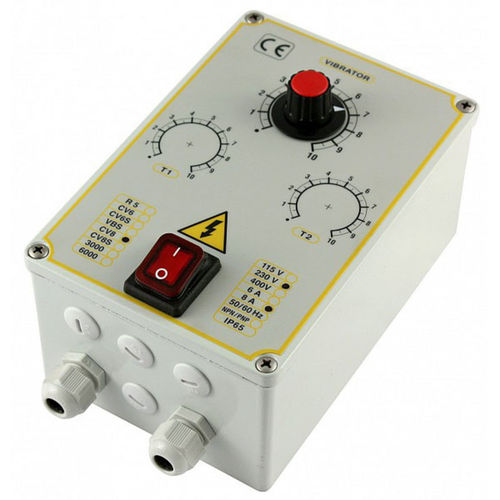

Vibrating feeder phase angle controller CV8

vibrating feeder phase angle controller
vibrating feeder phase angle controller
Add to favorites
Compare this product


Characteristics

Options
for vibrating feeders

Description

CV8 is a professional phase angle controller, 8A. It also has automatic input 0/10V 4/20mA from PLC and a double insulation to avoid interferences from external signals. There is also the possibility of having an amplitude sensor to keep the vibration constant without spikes (model CVFS). Application: Conveyor and assembly automation in packaging and dosing industry. Perfect if you need precise dosing (CV8S or CV8FS) or in working envoirment with interferences (CV ISO-17) Max Output Current [A] - 8 Input Voltage [V] - 230, 400 Vibration Frequency [Hz] - 30-130, 5-140, 50/100, 50/100 or 60/120 Output Voltage [V] - 40-210 or 100-380 Stabilized vs Input Voltage - Yes Soft Start [s] - 0.1, 1 ON/OFF - 0-24V, Dry contact Automatic Input PLC - 0-10V/4-20mA Working Temperature - -20/55°C (-4/131°F) Enclosure - Aluminum, Circuit, DIN35 Circuit, Plastic Protection Index [IP] - IP00, IP20, IP55 Standard Conformity - CE, EMC, Rohs Amplitude Sensor - No, SInd2
