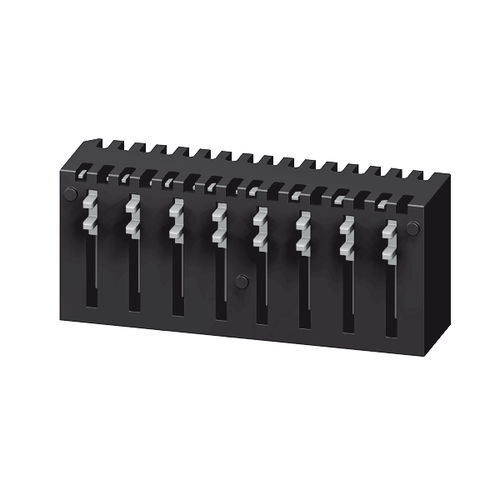

Power connector 445electrical power supplyPCBparallel
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- PCB
- Shape
- parallel
- Connection type
- male
- Electrical characteristics
- power, current
- Material
- copper
- Primary current
16 A
- Voltage
600 V, 1,500 V
- Pitch
5.08 mm
(0.2 in)- Operating temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
Pin headers, Power Connector 5,08 mm
Male power connectors for a current rate up to 16 Amps per contact
Pincount - 4, 8
Gender - Male
Polarising - yes
Material contact - Copper alloy
Plating contact - Sn
Material insulator - High temp. thermoplast UL94V-0
Max. processing temper. - 260°C for 10 seconds
Board termination - Through hole Through hole
Orientation to PCB - Parallel Parallel
No of rows - 1
Contact style - Die cut
Packaging - Reel (Series 445), Standard (Series 445)
