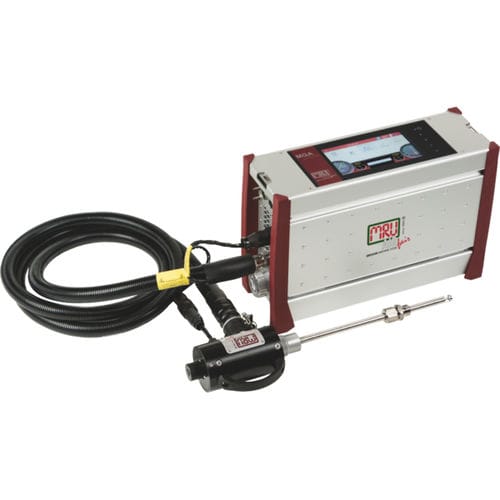

Volume measuring system MGAprime Q

flowopticalcalibration

Portable Automatic Measuring System (PAMS) suitable as an alternative method for the standard reference method for calibrating and validating stationary AMS in the context of QAL2 and AST in accordance with EN 14181 Basic-Equipment · With included, free of charge MRU calibration certificate, TÜV certificate · With the HPI gas sampling probe head with integrated heater for the low dust gas filter cartridge, with 3m heated Teflon sampling line and analyser temperature regulation setable by user, with gas temperature measurement using K-type (NiCrNi) thermocouple the probe head is including the low dust gas filter cartridge and one Ø12 x 300mm exchangeable probe tube · Including the APE acid dosage system with 10% H3PO4 (phosphoric acid shall be procured locally or see consumables / ask MRU) · Integrated, efficient dual heat exchanger gas cooler (Peltier type) with dual automatic condensate draining pumps · Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement · Strong, regulated sample gas pump and easy replaceable, effective PTFE filter · Zero gas (ambient air) inlet port and VENT outlet of sample gas · Stack gas temperature measurement up to 1.200°C · Combustion air temperature measurement up to 500°C · Differential pressure measurement +/- 100 mbar
