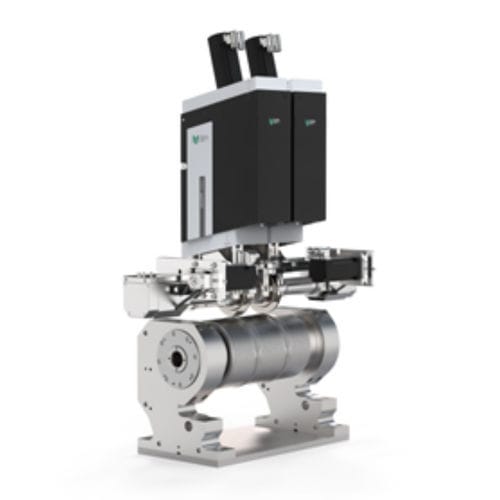

Ultrasonic welding machine MS sonxSYS COMBINE ROC

resistancefrictionautomatic

Newly developed ultrasonic generator MS sonxGEN PREMIUM is capable of delivering a continuous output of 3.5 kW, maximum peak power available 6 kW Oscillating systems with rectangular and trapezoidal sonotrodes are available in standardised widths from 85 mm to 270 mm Various rotating sonotrodes are available in 30 kHz and 20 kHz, in different widths The special bearing and guide concept of the servo-electrically driven feed unit offers maximum precision for fast and minimal process adjustments without guide friction at the operating point The simple and intuitive operable interface of the control system offers a wide variety of options for welding process design Engraved rolls, custom made in house, with complex welding patterns, surface-hardened to increase wear resistance with bale widths of up to 1,000 mm Rotating sonotrode with embossing roller with touch panel Welding of long seams For continual ultrasonic welding the mechanical vibrations are transferred to nonwovens by applying pressure. Through the friction of molecular and boundary surface of the individual workpieces, warmth is created that allows the absorbing coefficient of the material to increase. Point by point the nonwoven starts to melt. The reproducibility and welding quality is paramount for processing continuous sheet materials. The continual welding and continuous operation makes continuous welding joints without interruption possible. The ultrasonic technique is a very good alternative to other joining and cutting processes with high efficiency and broad forward-looking possibilities.
