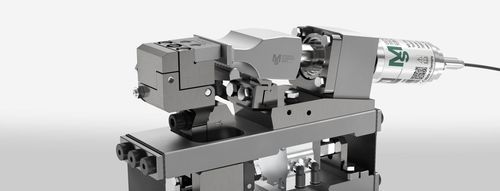

Seal module MS sonxSYS SEAL straight

Overview
The MS sonxSYS SEAL straight is a compact ultrasonic sealing module designed for precise longitudinal (fin) seams and top seams on pouch packaging. It delivers either firm or peelable seals for films, paper-film composites and nonwovens, and is suitable for VFFS and HFFS lines.

Module design and drive
The ready-to-integrate module uses MS "Carbon Hinge" technology for virtually wear-free guidance. It comprises a resonant unit and a complete anvil force control structure. The sonotrode is driven by the MS sonxGEN continuous sonic generator.

Benefits

• Compact, easy-to-integrate module with versatile adjustment and alignment options; wash-down capable
• Modular delivery from single components to complete systems
• Extended service life via low-wear, stable carbon flexure bearing (CFRP) without friction guides
• Energy-efficient, faster than thermal processes; supports Industry 4.0 communication standards
• Reliable start-stop behavior in production processes
• Immediate availability at switch-on; no heat transfer to product and reduced film shrinkage
• Suitable for new multilayer monolaminates
• Sealing possible despite contaminated seal areas
• Flexible seam geometries with minimal protrusions
• Applicable across various packaging lines (VFFS, HFFS)
• Automatic maintenance stroke with pneumatic cylinder

Application examples

• Piece goods:
  • Wet wipes
  • Wound compresses
  • Chocolate bars
  • Popsicles
  • Chocolate
  • Bakery products
  • Chips
  • Meat and sausage products
• Powdery filling materials:
  • Baking powder
  • Baking soda
  • Vanilla sugar
  • Salts
  • Washing powder
  • Medical products

Seam design
Precise control of fin-seals and top seams; seams can be configured as firm or peelable and enable flexible geometries with minimal seam protrusions.

Options

• MS sonxANA software: fast on-site analysis and parameterization on Windows-enabled tablet or notebook
• Interfaces: ProfiNet I/O, EtherNet/IP, EtherCAT

Technical specifications

• Operating frequency: 35 kHz
• Power: 700 W (continuous), 1,000 W peak
• Welding force: 10–250 N
• Parameterization: amplitude, force
• Process control: power
• Module weight: approx. 5 kg
• Dimensions (W×H×L): 84 x 150 x 348 mm
• Installation: horizontal, vertical
• Sonotrode material: titanium (coated)
• Anvil blade: exchangeable; steel (hardened and coated)
