Mini-ITX single-board computer MS-98B1
intel® celeron® N3350Intel® Atom® x5-E3940Intel® Celeron® J3455

Mini-ITX single-board computer - MS-98B1 - MSI - intel® celeron® N3350 / Intel® Atom® x5-E3940 / Intel® Celeron® J3455
Mini-ITX single-board computer - MS-98B1 - MSI - intel® celeron® N3350 / Intel® Atom® x5-E3940 / Intel® Celeron® J3455
Mini-ITX single-board computer - MS-98B1 - MSI - intel® celeron® N3350 / Intel® Atom® x5-E3940 / Intel® Celeron® J3455 - image - 2
Mini-ITX single-board computer - MS-98B1 - MSI - intel® celeron® N3350 / Intel® Atom® x5-E3940 / Intel® Celeron® J3455 - image - 3
Mini-ITX single-board computer - MS-98B1 - MSI - intel® celeron® N3350 / Intel® Atom® x5-E3940 / Intel® Celeron® J3455 - image - 4
Mini-ITX single-board computer - MS-98B1 - MSI - intel® celeron® N3350 / Intel® Atom® x5-E3940 / Intel® Celeron® J3455 - image - 5
Add to favorites
Compare this product

Characteristics

Form factor
mini-ITX
Processor
intel® celeron® N3350, Intel® Celeron® J3455, Intel® Atom® x5-E3940
Extension slot
SATA3, M.2 Key E, M.2 Key M
Operating system
Windows 10 IoT, Linux
Connectivity
RS-485, LVDS, RS232, USB 2.0, USB 3.2, HDMI, RJ45, RS-422, DisplayPort, eDP, GbE
Memory
DDR3L SO-DIMM
Other characteristics
industrial, multiple display, fanless
Processor frequency

Max.: 2.4 GHz

Min.: 1.1 GHz

Memory size

Max.: 8 GB

Min.: 0 GB

Description

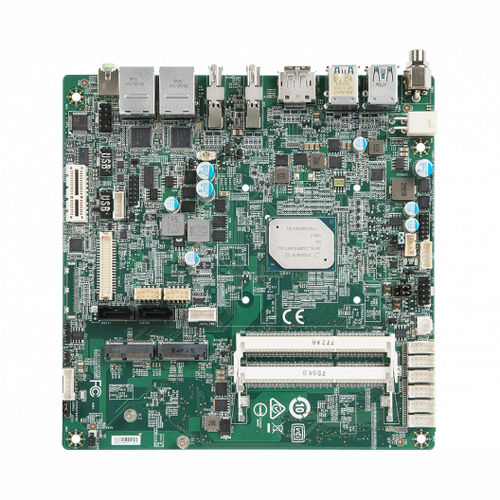

The MSI MS-98B1 is a Mini-ITX industrial motherboard featuring Intel® Apollo Lake SoC series, designed for fanless, low-power, high-performance applications with multiple display and function support. It supports up to 8GB of DDR3L RAM, triple independent displays, dual GbE LAN, and multiple I/O interfaces including USB, COM, and GPIO. It also offers expansion slots, SATA storage, and TPM 2.0. The motherboard operates with DC inputs of 12/19/24V and within a temperature range of 0 to 60°C, suitable for diverse industrial environments.
