ATX motherboard MS-98K9 series
Intel® Celeron®Intel® Core i3Intel® Core i5

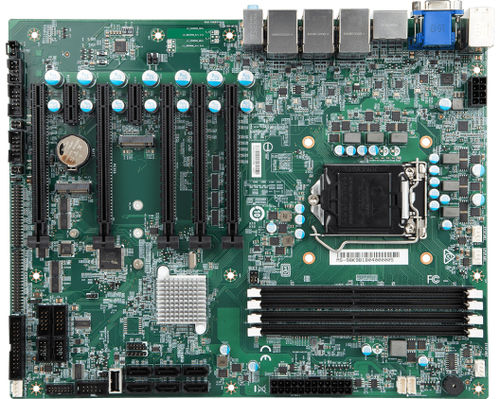

ATX motherboard - MS-98K9 series - MSI - Intel® Celeron® / Intel® Core i3 / Intel® Core i5
ATX motherboard - MS-98K9 series - MSI - Intel® Celeron® / Intel® Core i3 / Intel® Core i5
ATX motherboard - MS-98K9 series - MSI - Intel® Celeron® / Intel® Core i3 / Intel® Core i5 - image - 2
ATX motherboard - MS-98K9 series - MSI - Intel® Celeron® / Intel® Core i3 / Intel® Core i5 - image - 3
ATX motherboard - MS-98K9 series - MSI - Intel® Celeron® / Intel® Core i3 / Intel® Core i5 - image - 4
Add to favorites
Compare this product

Characteristics

Format
ATX
Processor
Intel® Celeron®, Intel® Pentium, Intel® Xeon, Intel® Core i5, Intel® Core i3, Intel® Core i7, 8th Generation Intel® Core™
Chipset
Intel® Q370 Express, Intel® C246
Memory
DDR4 SDRAM
Extension slot
SATA3, M.2, 2 PCIe x8
Socket
Intel LGA 1151
Applications
industrial
Operating system
Windows 10 IoT Enterprise, Linux, Windows 11
Memory frequency
DDR4 2666 MHz
Connectivity
USB 3.2, USB 2.0, USB 3.0, HDMI, RS-232, VGA, RS-485, DisplayPort, RS-422, GbE, PS2

Description

The MSI MS-98K9 is an industrial ATX motherboard designed for high-performance solutions, supporting 8th Gen Intel® Coffee Lake-S processors (Xeon®, Core™ i7/i5/i3, Pentium®, Celeron®) with Intel® C246/Q370 chipsets. It features 4 DDR4 slots for up to 64GB RAM, triple independent display outputs (VGA, 2DP, HDMI), multiple PCIe slots, comprehensive storage options including 6 SATA 3.0 ports with RAID support, extensive I/O interfaces, and robust expansion capabilities. It operates in a wide temperature range, making it suitable for various industrial applications.
