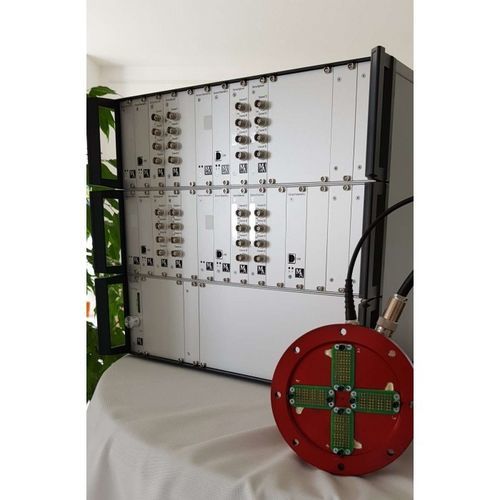

Telemetry system for the aerospace industry 32-Kanal-Telemetriekomplexfor research and development
Add to favorites
Compare this product
Characteristics
- Domain
- for the aerospace industry, for research and development
Description
32-channel telemetry system for strain gauge (DMS) measurements during GTE tests
System description:
Features / Technical specifications
System description:
- Designed to operate as part of GTE test benches
- Design: shaft-end mounting
- Measured signal frequency range: 0 Hz to 20 kHz
- Measurement error not greater than ≤ 0.1% (relevant metrological documentation available)
- Maximum sampling rate: 80,000 samples/s
- Operates at rotational speeds from 0 to 20,000 rpm
- Number of (dynamic) strain gauge channels: at least 32
- Number of analog temperature channels: at least 2
- Supports strain gauge bridge connections: full, half, quarter bridge; nominal 120 Ω or 350 Ω
- Programmable sensor excitation current adjustable according to sensor rated power
- Operating temperature range: -20 °C to +125 °C
- Power supply for stationary equipment: 220 V, 50 Hz
- Possibility to expand capacity according to technical requirements
- Ensures simultaneous operation of all load cell channels
- Ability to simultaneously disconnect power to all sensors for pickup control on input leads
- Maintains functionality of remaining channels in case of one or more channel failures
- Software provides telemetry unit control and functions for monitoring telemetry status
- System includes a set of all required connection cables
- High signal-to-noise performance and protection of sensor signals from external interference sources (e.g., drive motors, arc welding)
- Built-in monitoring means for device condition, including diagnostics of sensor and communication line breaks
- Telemetry can be disassembled and installed on another shaft without modifying the shaft-end design
Features / Technical specifications
- Product type: telemetry system for strain gauges (DMS)
- DMS channels: ≥ 32 dynamic channels
- Analog temperature channels: ≥ 2
- Frequency range: 0 Hz – 20 kHz
- Maximum sampling rate: 80,000 samples/s
- Rotational speed: 0 – 20,000 rpm
- Measurement error: ≤ 0.1%
- Supported bridge connections: full, half, quarter; nominal resistances 120 Ω or 350 Ω
- Programmable sensor excitation current based on rated power
- Operating temperature: -20 °C to +125 °C
- Power supply (stationary): 220 V, 50 Hz
- Includes all required connection cables
- Functions: channel monitoring, device status monitoring, diagnostics for sensor and line failures
- Protection against interference from external exposure sources
