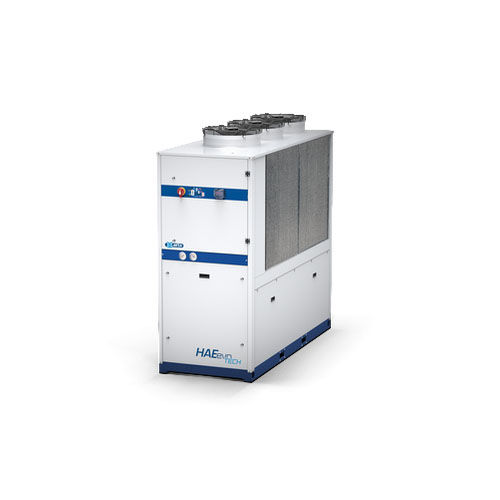

Air/water heat pump HAEevo TECH
reversible

air/water heat pump
air/water heat pump
Add to favorites
Compare this product


Characteristics

Type
air/water
Other characteristics
reversible
Heating power

Min.: 11.1 kW

Max.: 84.3 kW

Cooling power

Min.: 12.8 kW

Max.: 88.4 kW

Description

The HAEevo TECH reversible heat pumps are high efficiency units specifically designed for wine industry, and generally for all process applications when high performance, continuous operation and reduced management costs are the main requirements. The oversized heat exchangers surfaces and optimised scroll compressors ensure high performances, maximising the energy savings. The wide numbers of options available makes the units highly customizable, suitable to satisfying any type of plant solution. All units are compliant with the limits imposed by the ErP regulation for seasonal efficiency ratio SEPR HT and SCOP. NOT JUST ENOLOGY Other applications where the HAEevo TECH reversible heat pumps are effectively employed are: the temperature control of the calenders for cooling / heating of plastic films and cylinders for flexographic printing; the heating of buildings; food plants drying and distillation; plants for the processing of wood and paper; chemical plants. Benefits: Seasonal energy efficiency compliant with ErP Directive 2009/125/EC; Scroll compressors ensure high efficiency and performances, maximising the energy savings; Evaporator with in-tank configuration specifically designed for process cooling applications. It allows high flow rates with low pressure drops and compatibility with impure process fluids even with high percentages of glycol; Oversized water storage tank, useful to compensate the instability caused by sudden changes of the required load;

Catalogs
