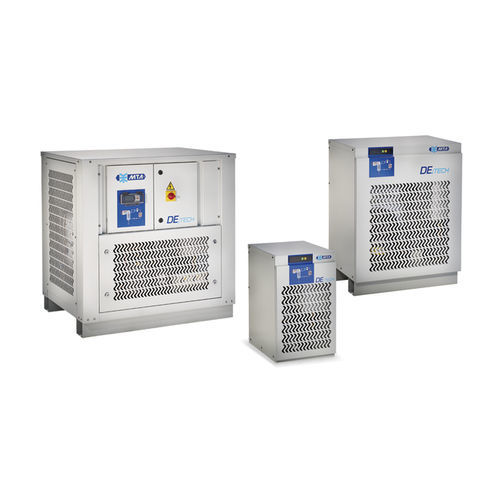

Refrigerated compressed air dryer DE iTECH
compactthermal mass

refrigerated compressed air dryer
refrigerated compressed air dryer
Add to favorites
Compare this product


Characteristics

Technology
refrigerated
Other characteristics
compact, thermal mass
Engine power

Min.: 130 W (0.18 hp)

Max.: 3,640 W (4.95 hp)

Capacity

Min.: 0.4 m³/min (14.13 ft³/min)

Max.: 37.7 m³/min (1,331.36 ft³/min)

Working pressure

Min.: 3 bar (43.51 psi)

Max.: 16 bar (232.06 psi)

Ambient temperature

Min.: 20 °C (68 °F)

Max.: 50 °C (122 °F)

Weight

Min.: 18 kg (39.7 lb)

Max.: 285 kg (628.3 lb)

Description

DE iTECH is the new generation of energy saving refrigeration cycle dryers with which MTA not only renews its range of products for the processing of compressed air but reinterprets the concept of thermal mass to which the DE Hybrid dryers owe their success. The innovative Impulse Technology system offers important advantages in terms of energy savings, reliability and management costs thanks to the ability of DE iTECH to adapt perfectly to the real requirements of the system. The dryer adjustment system controls its operation and ensures the ideal energy solution for drying of the compressed air, allowing high savings and at the same time excellent stability of the dew point, even under dynamic conditions. Benefits Innovative Impulse Technology system for control of the drying capacity via impulse adjustment of the refrigerant liquid flow or due to the thermal mass effect. New compact 3-in-1 aluminium heat exchanger with optimised perfect countercurrent heat exchange, it contains a stainless steel condensate separator Minimal load losses (average 0.09 bar) through fluid dynamic optimisation and the large transfer sections Constant dew point under every operating condition Low environmental impact and reduced carbon dioxide emissions thanks to the Impulse Technology energy saving system and the use of R134a and R404A environmentally friendly refrigerants Quick and easy installation Simplified maintenance Maximum reliability

Catalogs

DE iTECH
DE iTECH
8 Pages
