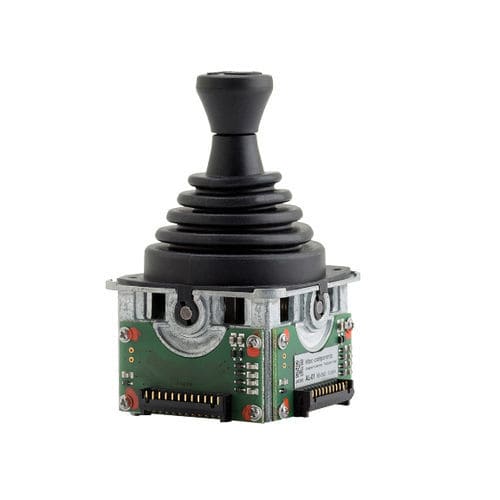

Analog joystick AL-01

digitalcross gateIP66

Each joystick has two yokes: one for its x-axis and one for its y-axis. The yokes type of a joystick is defined by the maximum available number of steps in each axis. In addition to the version with 5 steps, there is one more option with 2 steps. AL-01 features YOKE ALTERNATIVE TYPE Each joystick has two yokes: one for its x-axis and one for its y-axis. The yokes type of a joystick is defined by the maximum available number of steps in each axis. In addition to the version with 5 steps, there is one more option with 2 steps. AL-01 options The AL-01 joystick family can be customized with the following options: • knob type • coulisse type • friction (position hold) • angle limiter • gaiter Every cableless or cable control system can have each joystick configured in a different way in relationship of the requests with the machine and its application. COULISSE TYPE They are available: • cross gate: prevents diagonal movements of the lever • single axis: allows only one direction of movement • other options on demand. Note: the coulisse type must be specified with the order placement. FRICTION (POSITION HOLD) There is the possibility to have the AL-01 joystick with friction (position hold) function. One or both axses are available. The weight change to 177 g (one axis frictioned) or to 191 g (both axes frictioned). Technical data MECHANICAL Lever breakouts torque/force xy axes - minimum 0,14 Nm / > 2 N Lever operating torque/force xy axes (full deflection) - maximum 0,35 Nm / > 6 N (at room temperature) Maximum allowable torque xy axes - 1,5 Nm Maximum allowable force xy axes - 200 N Lever action - self centering, aligned x and y axes
