static balancing system / for aeronautical applications / for turbine wheels / high-speed

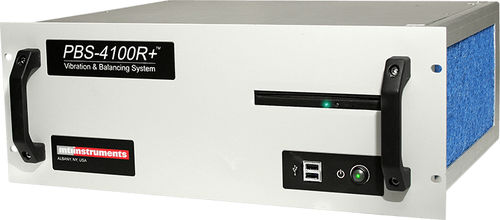

PBS-4100R+

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
static balancing system / for aeronautical applications / for turbine wheels / high-speed static balancing system / for aeronautical applications / for turbine wheels / high-speed - PBS-4100R+
{{requestButtons}}

Characteristics

  • Type:

    static

  • Applications:

    for aeronautical applications, for turbine wheels

  • Other characteristics:

    high-speed

Description

The “one-shot” balancing solutions for test cells.

Test cell vibration analysis and engine trim balance instruments and accessories for commercial and military aviation gas turbine engines. Designed to quickly isolate engine problems and locate troubles. Rapid configuration and intuitive user interface make it straightforward and uncomplicated to use.

Test Parameters for the following engines:
CFMI: CFM56-2,-3,-5,-7
GE: CF34-3, -8, -10, CF6-6, -50, -80A, -80C, GE-90-94, -115, CJ-610, CF-700, F101, F110-100, – 129, -132, -400, F118-101, LM-1500, 1600, 2500, 6000 (all versions)
Honeywell: ALF502, LF507, TFE731 (all models)
P&W: PT6, JT3D, JT8D (all small and large models), JT9D (all models)
PW2000 -2037, -2040, -2043, PW4000 (All Models), F-100 (all models), F-117, GG4 and other industrials.
Rolls-Royce: RB211-22B, RB211- 524B/C/D, RB211-524G/H, Trent (all models) RB211-535C/E4, Tay (all models), Spey
Rolls-Royce-Allison: GMA3007
IAE:V2500 (all models)

Features

Up to 12 vibration channels to support experimental testing
Up to 3 speed channels to enable testing of three-spool engines
Up to 32 Analog Output channels to drive test cell meters and external instrumentation
Vibration readings are converted and presented in desired units
Display vibration data in time & frequency domain with several different formats including tables, bar graphs and X-Y plots
Ability to balance engines that exhibit vibration peaks at up to 20 speeds
Quickly reduce vibrations by using the intuitive WinPBS Balance Wizard
Optional Remote Operation via ETHERNET for test cell facilities or Power Plant Engineering access
May be fully operated and interrogated by external test cell control systems
