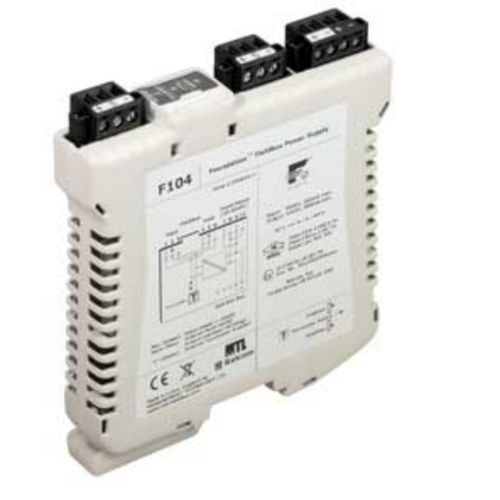

DIN rail power supply F10 series

DC/DCwith short-circuit protectionfor fieldbus

The F101, F102 and F104 fieldbus power supplies each provide power for a single FOUNDATION fieldbus™ H1 segment. Galvanic isolation, power conditioning and segment termination are incorporated. The F10x Series modules should be adopted for all new installations requiring single-segment, non-redundant power in small to medium scale applications such as batch processing. The range features: • Compact design • Fully isolated • Low power dissipation • DIN rail power bus option A range of output voltages and currents is supported, allowing the modules to be used in a variety of fieldbus environments e.g. * The F101 is intended for use in applications that require live-workable, ‘energy-limited’ spurs in hazardous areas, where field devices are certified for up to 24V input. When used with Megablock wiring hubs with SpurGuard short circuit protection, the spurs are compatible with typical non-incendive and intrinsically safe fieldbus instruments in Zone 2 and Division 2. * The F102 is intended for all general-purpose applications. It has a high output voltage and is capable of powering heavily loaded segments and long cable lengths. It can also support energy-limited spurs with fieldbus devices having Ui≤ 30V.
