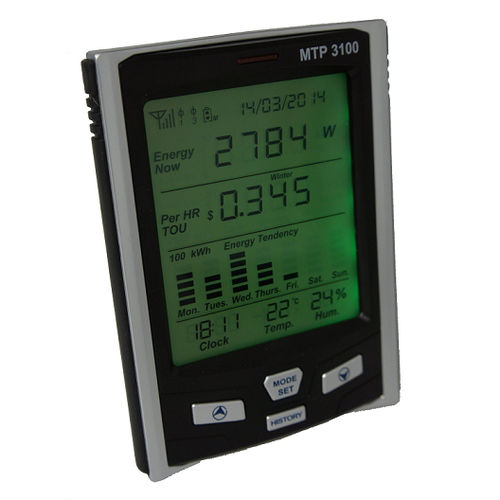

Portable energy management unit MTP 3100

Advantages Take control of your electricity usage and monitor the cost of using your home appliances and lights Discover and reduce the size of your carbon footprint Connect to a single phase, a two phase or three phase system (3rd sensor 200A optional) Characteristics Measures: instant energy (kW), energy consumption (kWh), total cost ($ value), pollution (Kg CO2), averages, energy tendency, ambient temperature and relative humidity Display: time/date, battery status (monitor & transmitter), backlight Tariff rates: Two tariff setting modes. Time-of-use (TOU) and Normal-Meter-Pricing (NMP) History: retrieve past information directly from the energy monitor - viewable by day, week, and month. Energy consumption (kWh), total cost ($ value), pollution (Kg CO2) Alarm setting: adjustable alarm to indicate maximum energy consumption Transmitter: single to three phase, transmission distance: 30 to 80 meters This unit works on a single to three phase system (90V-600V) maximum of 200amps per clamp (contents of package includes 2 clamps. 3rd clamp sold separately) Software: track energy consumption and view graphs directly from your computer Error of margin: ± 8% Monitor dimensions: 90 x 130mm Clamp size: 18mm diameter Battery and power supply
