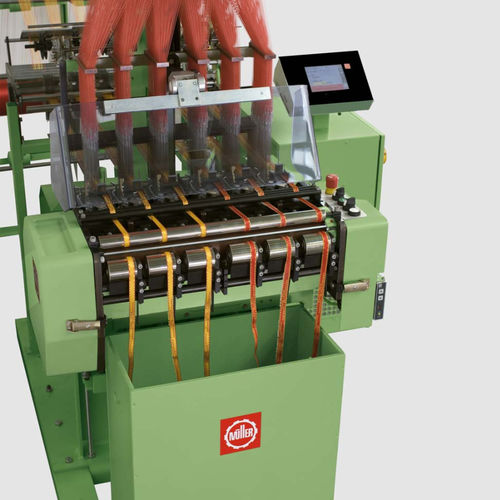

Weaving machine NFRE...ED

For elastic and non-elastic, light to medium-weight tapes with endless repeat lengths. Machine drive with an efficiency class 1 motor and frequency inverter Simple weaving speed regulation Adjustment of the weaving speed to the pattern or the yarn to be used without time losses Electronically controlled stepper motor for the regulator Weft densities of 8-120 wefts per cm (resp. 4-80 wefts/cm) Any weft density variations within a pattern provide articles with combined weft densities Greater efficiency and time savings as the change of gear on the take-off for weft density changes is no longer required Electronically controlled stepper motor drive for the weft, binder and locking thread transports Reproducible settings of the thread feed simultaneously on all thread let-offs without machine stops Production of two differing tape widths possible using two weft thread drives Slight width variations and corrections possible Picot effects possible on the weft insert side Elastic and non-elastic tapes with warp and picot effects Patterning is achieved with up to 20 electronically controlled healdframes
